10K Dump | Sierra Nevada Trailer Company

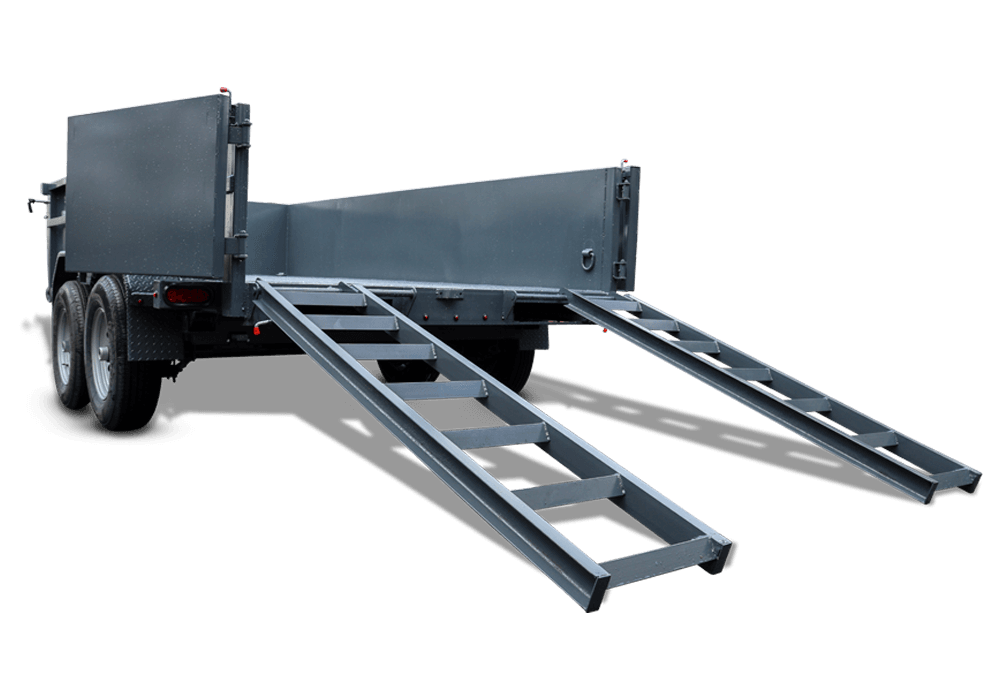

10K Dump

Eagle TrailersDump

10K Dump

10K Dump

Models & Sizes

ED510TA3
5 ' x 10 ' Tandem Axle Heavy Duty Dump w/Scissor Lift
Curb Wt
2370 lb
GVWR
10000 lb
ED610TA3
6 ' x 10 ' Tandem Axle Heavy Duty Dump w/Scissor Lift
Curb Wt
2475 lb
GVWR
10000 lb
ED612TA3
6 ' x 12 ' Tandem Axle Heavy Duty Dump w/Scissor Lift
Curb Wt
2645 lb
GVWR
10000 lb
ED710TA3
7 ' x 10 ' Tandem Axle Heavy Duty Dump w/Scissor Lift
Curb Wt
2595 lb
GVWR
10000 lb
ED712TA3
7 ' x 12 ' Tandem Axle Heavy Duty Dump w/Scissor Lift
Curb Wt
2765 lb
GVWR
10000 lb

Available Units

ED612TA3
$9,100Eagle Black Paint

Standard Features

Adjustable 2 5/16 " Coupler w / 7K Drop Leg Jack ( 10K Capacity )
Brakes Both Axles
10 gauge ( - ) Floor and Side Walls
Stake Pockets
Tube Tongue ( Longer than competition )
Front and Rear Diamond Plate Fender Steps
2 " Flat Bar Heavy Duty Tie Rail
Trickle Charge Line From Tow Vehicle
HD Deep Cycle Battery
15 " Wheels & Tires ( Radial )
Direct Push 5 " Bore Cylinder
Sealed Beam LED Lights
Electric / Hydraulic USA Made Pump with Reservoir and Gravity Override
PPG Primer and Paint
Tarp Bar
Lockable Tongue Box

Popular Options

Stored Heavy Duty Ramps w/ 4 D-Rings
Spare Tire and Mount

Specifications

GAWR: 10400
Coupler Height: Adjustable
Deck Height: 28"
Main Frame: 5" Channel 4" Channel Cross Members and Reinforced Frame for Direct Push 5" Bore Hydraulic Cylinder
Axle: 2 ( 5,200 # ) Posi - Lube Axle with Brakes
Floor: 10 Gauge (-) Steel Floor
Sides: 10 Gauge (-)
Coupler: Adjustable 2 5/16 " Coupler
Dump Box Frame: 2 " x 5 " Rectangle Tube ( .120 " ) 2" x 2" Heavy Wall Tubing 16 " on Center Barn Doors 10 gauge ( - ) sides

Available Colors

Primary Colors

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost)

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Dual Action Spreader Gate

•Metal Covered Mesh Roll Tarp System

•Scissor Lift

•Higher Sides or Extensions

•110 Volt Charger

Electric Plug

7-Way RV Molded Water Tight Plug

Fenders

9 " x 72 " Diamond Plate Double Broke

Finish

Steel is cleaned (wiped down) to ensure quality protective finish

Hoist

Electric / Hydraulic Direct Push Cylinder Hoist ( 45 ° dump angle or more ) Greasable Zerks

Jack

7K Drop Leg Tongue Jack

Lights

Sealed Beam LED D.O.T.

Paint

PPG Primer and Paint

Ramps

Optional

Safety Chain

36" x 5/16" 11.7K Capacity

Suspension

Multi-Leaf Spring

Tires

ST 225/75 R15 Load Range D

Tongue

2" x 5" Rectangular Tube (.188 Thick Wall)

Uprights

2" x 4" Rectangle Tube

Wheels

15 x 6 5-5.5 Mod (Silver)

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
