5.2K Dump | Sierra Nevada Trailer Company

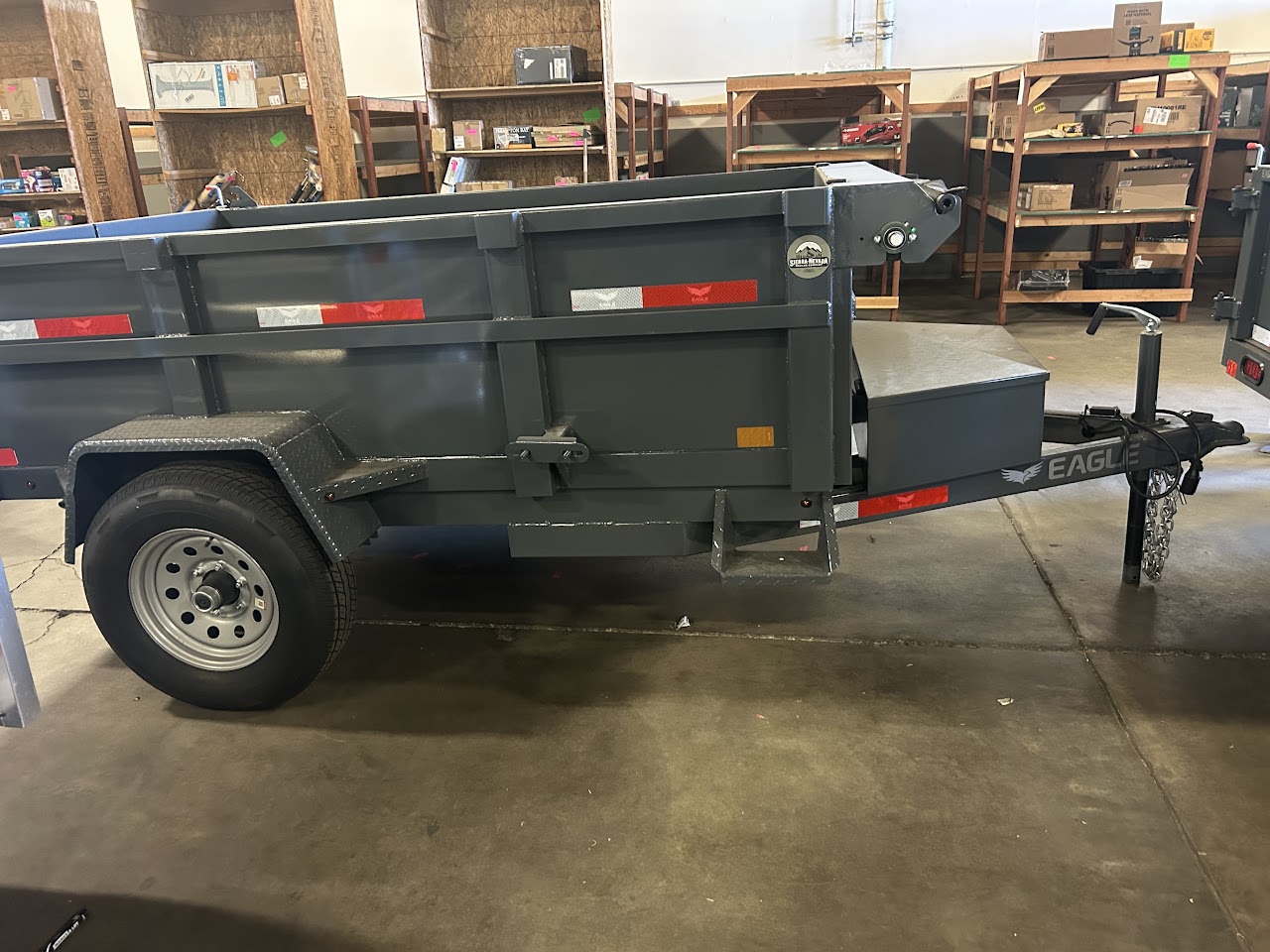

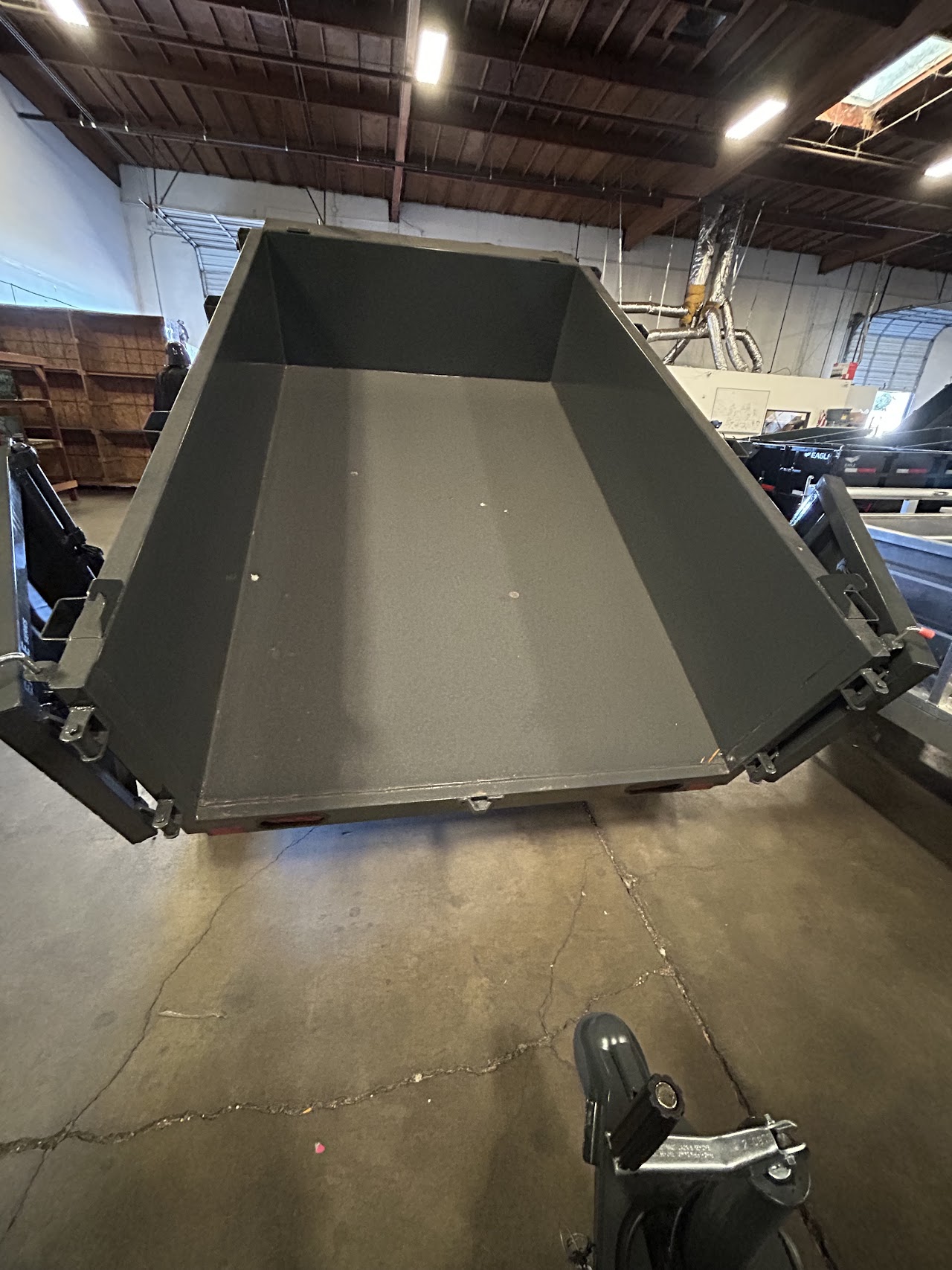

5.2K Dump

Eagle TrailersDump

5.2K Dump

Models & Sizes

ED508SA3
5 ' x 8 ' Single Axle Heavy Duty Dump
Curb Wt
1540 lb
GVWR
5200 lb
ED510SA3
5 ' x 10 ' Single Axle Heavy Duty Dump
Curb Wt
1625 lb
GVWR
5200 lb
ED610SA3
6 ' x 10 ' Single Axle Heavy Duty Dump
Curb Wt
1690 lb
GVWR
5200 lb

Available Units

ED508SA3
$6,225Majestic Gray - Standard
ED508SA3
$5,850Majestic Gray - Standard

Standard Features

2 5/16 " Coupler w / 2K Top Wind Tongue Jack
Brakes on Axle
PPG Primer & Paint
Tube Tongue ( Longer than competition )
Stake Pockets
Front and Rear Diamond Plate Fender Steps
2 " Flat Bar Heavy Duty Tie Rail
Trickle Charge Line From Tow Vehicle
15 " Wheels & Tires ( Radial )
Direct Push 5" Bore Hydraulic Cylinder
Sealed Beam LED Lights
Electric / Hydraulic Pump with Reservoir and Gravity
Override
Tarp Bar
Lockable Tongue Box

Popular Options

Stored Heavy Duty Ramps w/ 4 D-Rings
Spare Tire and Spare Mount
Dual Action Spreader Gate
Mesh Roll Tarp w/ Metal Cover

Specifications

GAWR: 5200
Coupler Height: 18"
Deck Height: 25"
Main Frame: 4" Channel 3" Channel Cross Members and Reinforced Frame for Direct Push 5" Bore Hydraulic Cylinder
Axle: 5,200 # Posi - Lube Axle with Brakes
Floor: 10 Gauge (-) Steel Floor
Sides: 10 Gauge (-)
Coupler: 2 5/16 " Coupler
Dump Box Frame: 2 " x 4 " Rectangle Tube ( .120 " ) 1 ½ " x 1½ " Heavy Wall Tubing 16 " on Center Barn Doors 10 gauge ( - ) sides ( Note : with ramps 2 " x 5 " dump box frame )

Available Colors

Primary Colors

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost)

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

•Scissor Lift ILO 5" Direct Push Cylinder

•Higher Sides - 31" or 43"

•Fold Down and/or Removable Higher SIdes

•Side Foot Step

•110 Volt Charger

•Extensions - 2'

Electric Plug

7-Way RV Molded Water Tight Plug

Fenders

10" x 32"

Finish

Steel is cleaned (wiped down) to ensure quality protective finish

Hoist

Electric / Hydraulic Direct Push Cylinder Hoist ( 45 ° dump angle or more ) Greasable Zerks

Jack

2K Top Wind Tongue Jack

Lights

Sealed Beam LED D.O.T.

Paint

PPG Primer and Paint

Ramps

Optional

Safety Chain

5/16" x 30" 5.2K Capacity

Suspension

Multi-Leaf Spring

Tires

ST 225/75 R15 Load Range D

Tongue

2" x 4" Rectangular Tube

Uprights

2" x 4" Rectangle Tube

Wheels

15 x 6 6-5.5 Mod (Silver)

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
