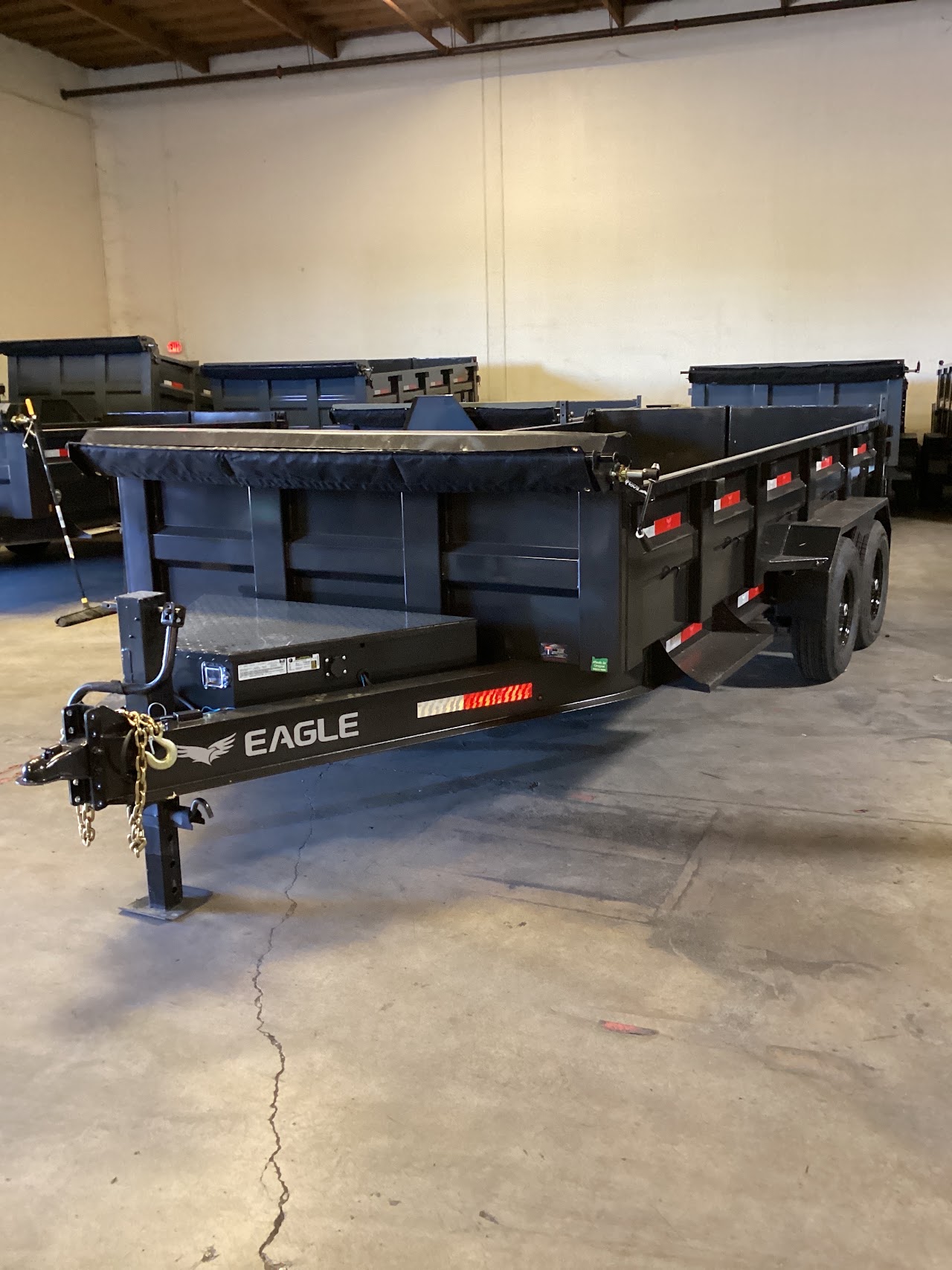

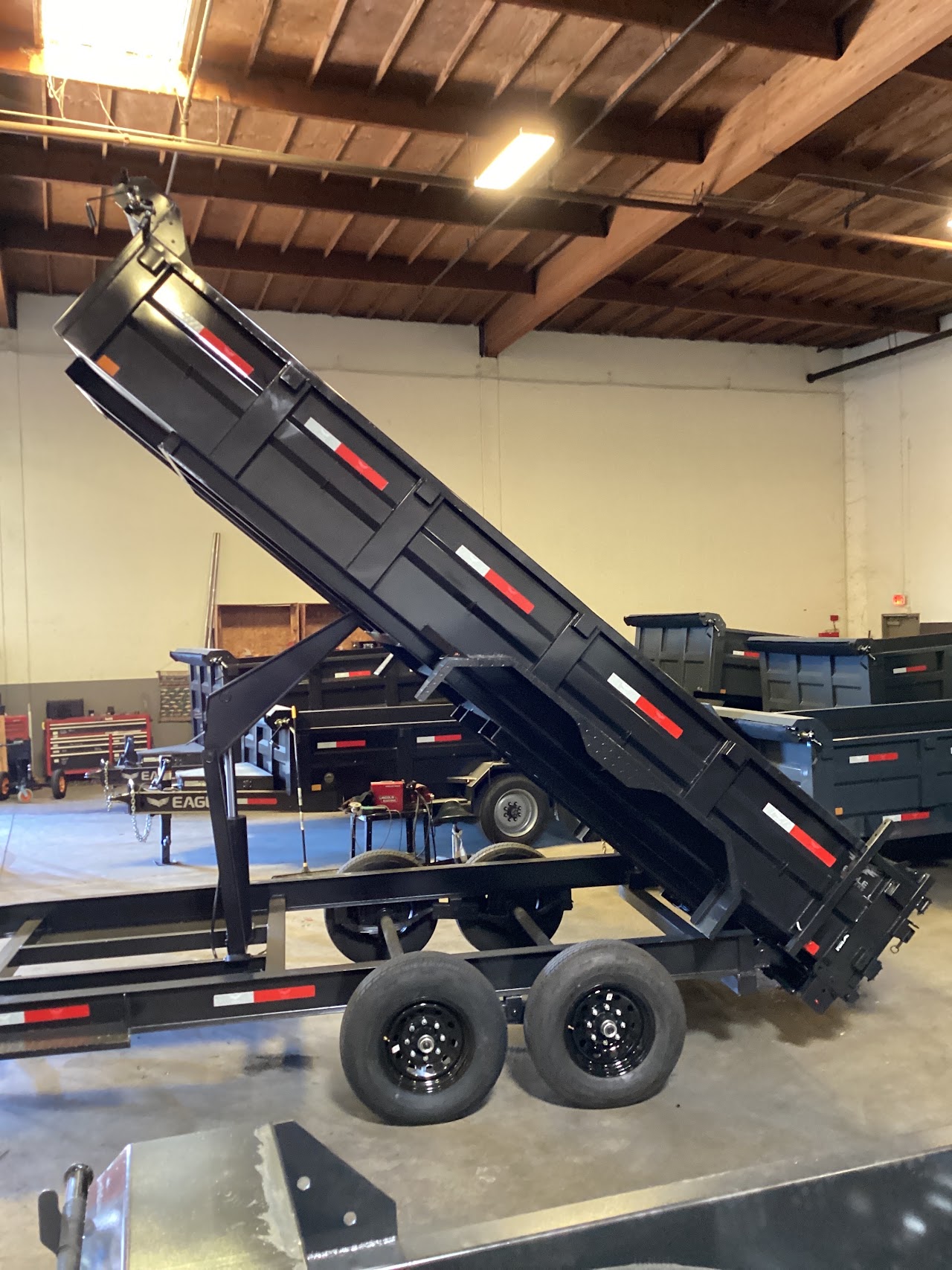

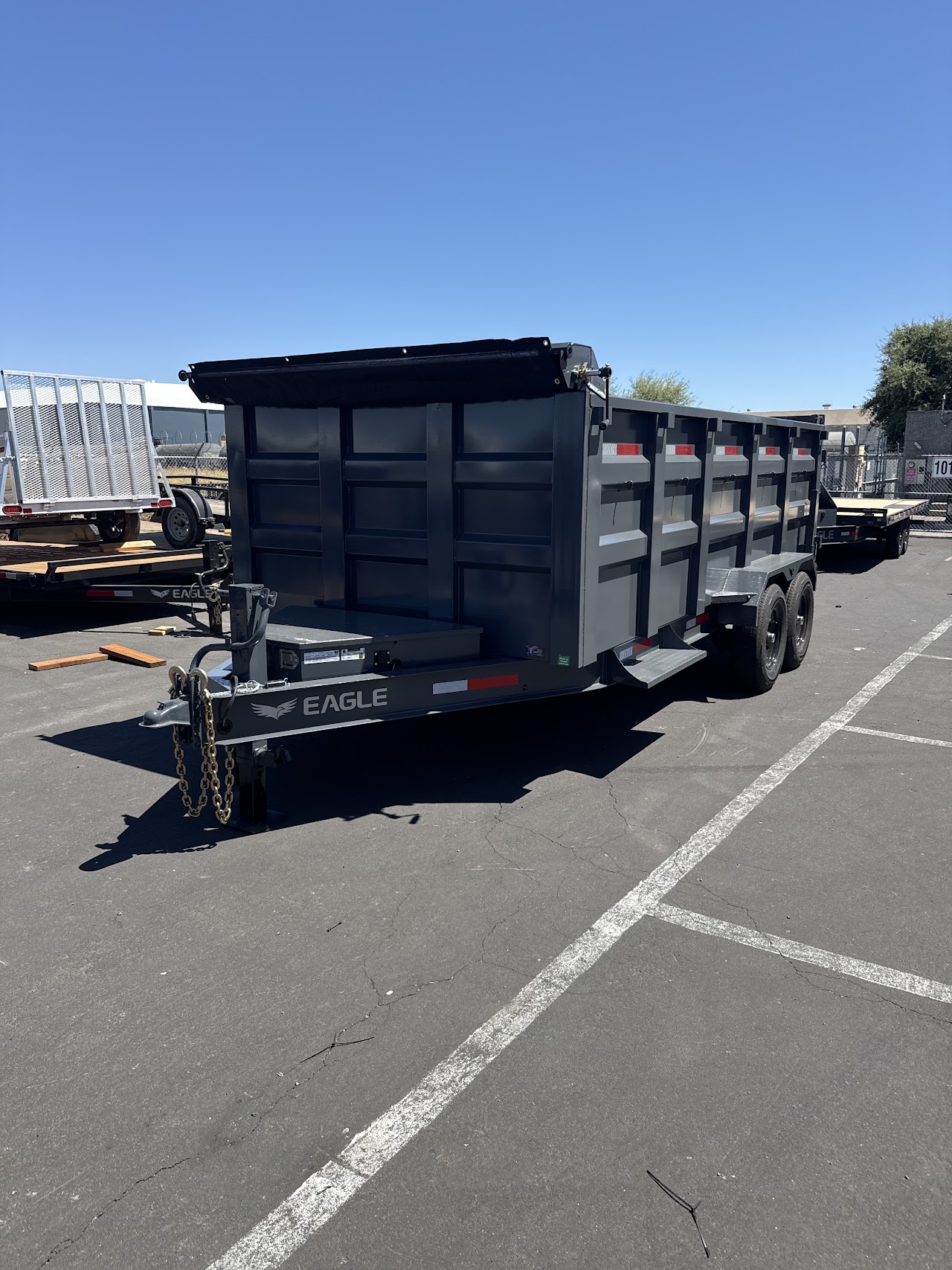

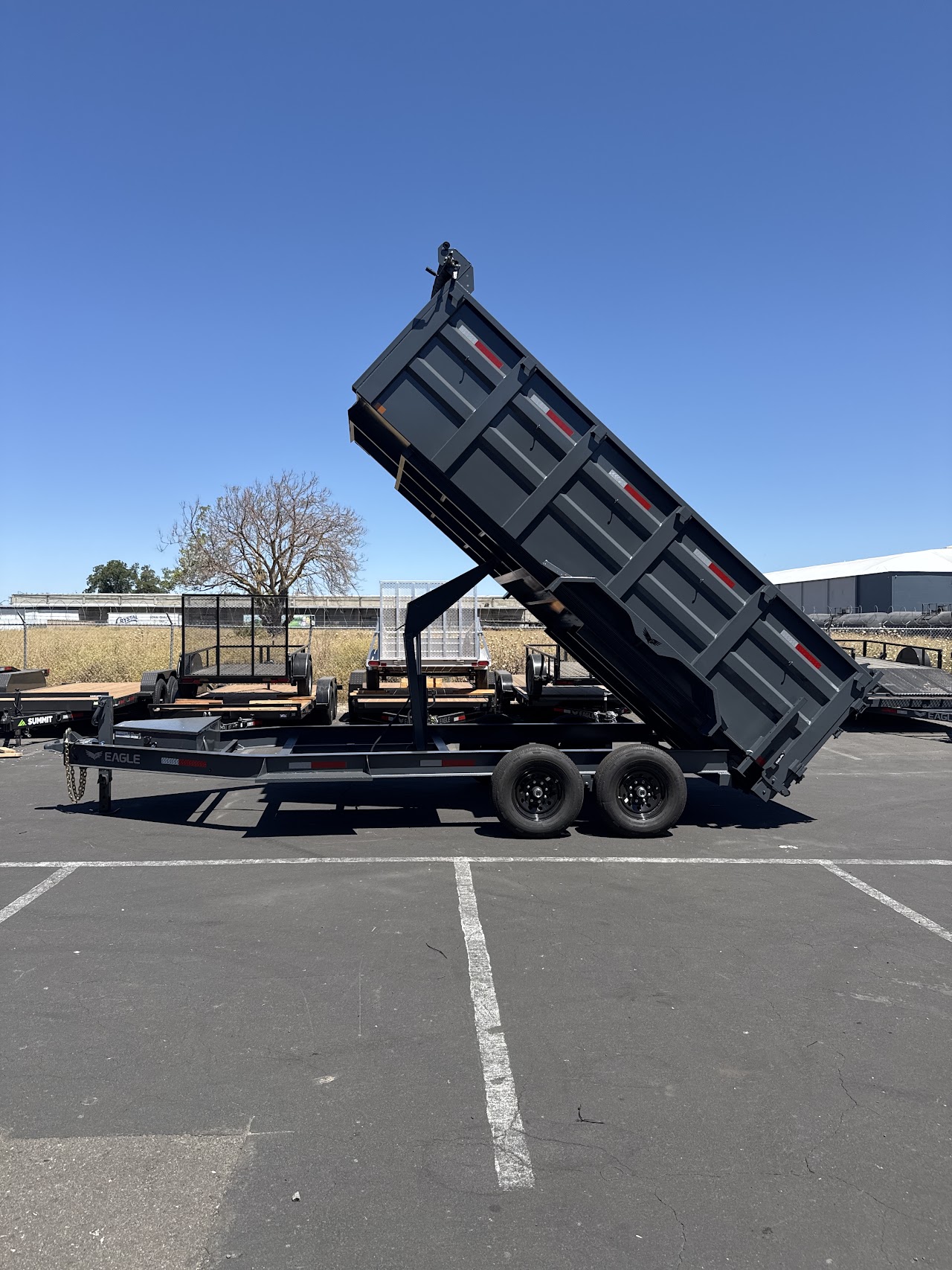

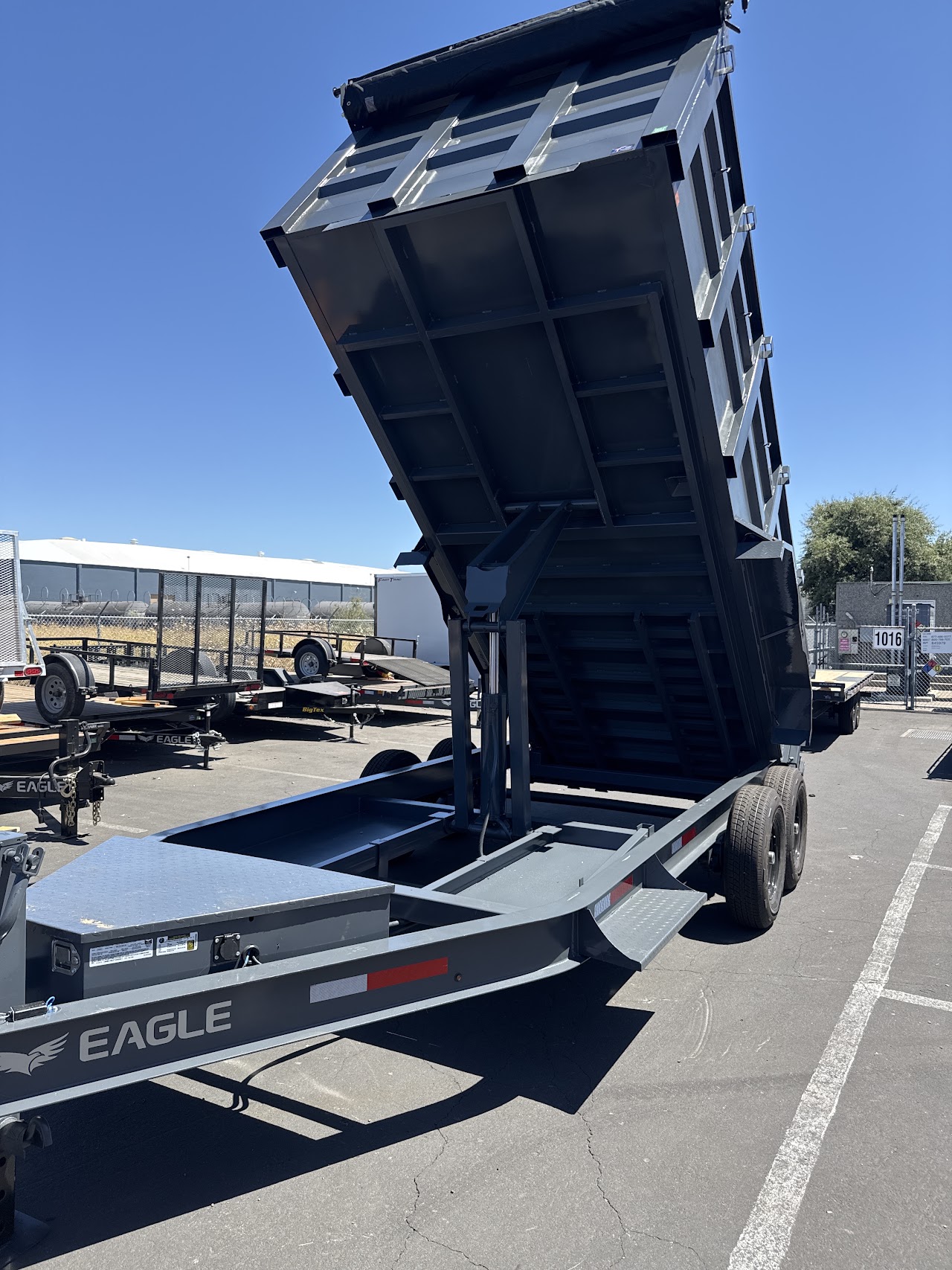

14K Low Profile Dump

Eagle TrailersDump

Models & Sizes

RDL24714TA5
7 ' x 14 ' Tandem Axle Low Pro Dump , 24 " Sides
Curb Wt
3790 lb
GVWR
14000 lb
RDL36714TA5
7 ' x 14 ' Tandem Axle Low Pro Dump , 36 " Sides
Curb Wt
4015 lb
GVWR
14000 lb
RDL48714TA5
7 ' x 14 ' Tandem Axle Low Pro Dump , 48 " Sides
Curb Wt
4110 lb
GVWR
14000 lb
RDL24716TA5
7 ' x 16 ' Tandem Axle Low Pro Dump , 24" Sides
Curb Wt
3890 lb
GVWR
14000 lb
RDL36716TA5
7 ' x 16 ' Tandem Axle Low Pro Dump , 36 " Sides
Curb Wt
4150 lb
GVWR
14000 lb
RDL48716TA5
7 ' x 16 ' Tandem Axle Low Pro Dump , 48 " Sides
Curb Wt
4290 lb
GVWR
14000 lb

Available Units

Standard Features

8 " iBeam Tongue and Frame Construction
Trickle Charge Line from Tow Vehicle
16 " Wheels and Tires ( Radial )
Sealed Beam LED Lights
PPG Primer and Paint
Spare Tire Mount
4 D - Rings
Heavy Duty Diamond Plate Fenders
10 gauge ( - ) 24 " , 36 " or 48 " Walls , 8 ( - ) gauge Floors
3 " x 3/16 " Channel Cross Members
4 ″ Full Length Bed Runners and Ramp Pockets
Stored HD Ramp
Metal Cover Mesh Tarp Roll System
110 Volt Charger
Electric / Hydraulic Pump and Reservoir with Gravity Override
Rear Stabilizer Jacks
Tarp Bar
Expanded Metal Tool Tray Under Dump Box
Front Frame Foot Step
Dual Action Spreader Gate

Popular Options

Specifications

GAWR: 14000
Coupler Height: 13.5" to 21.5"
Deck Height: 33"
Main Frame: 8" iBeam Frame
Axle: 2 (7,000 #) Axles with Brakes
Floor: 8 Gauge (-) Steel Floor
Coupler: Adjustable 2 5/16 " Coupler
Dump Box Frame: 2 " x 5 " Rectangle Tube\3" Channel 16" on Center Three-Way Spreader Gate 10 Gauge (-) Sides 5" Channel Full Length Runners (Note: with Ramps 3" HD Channel)
Electric Plug: 7-Way RV Molded Water Tight Plug
Fenders

Available Colors

Primary Colors

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost)

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401
