10K Raptor Low Profile Dump | Sierra Nevada Trailer Company

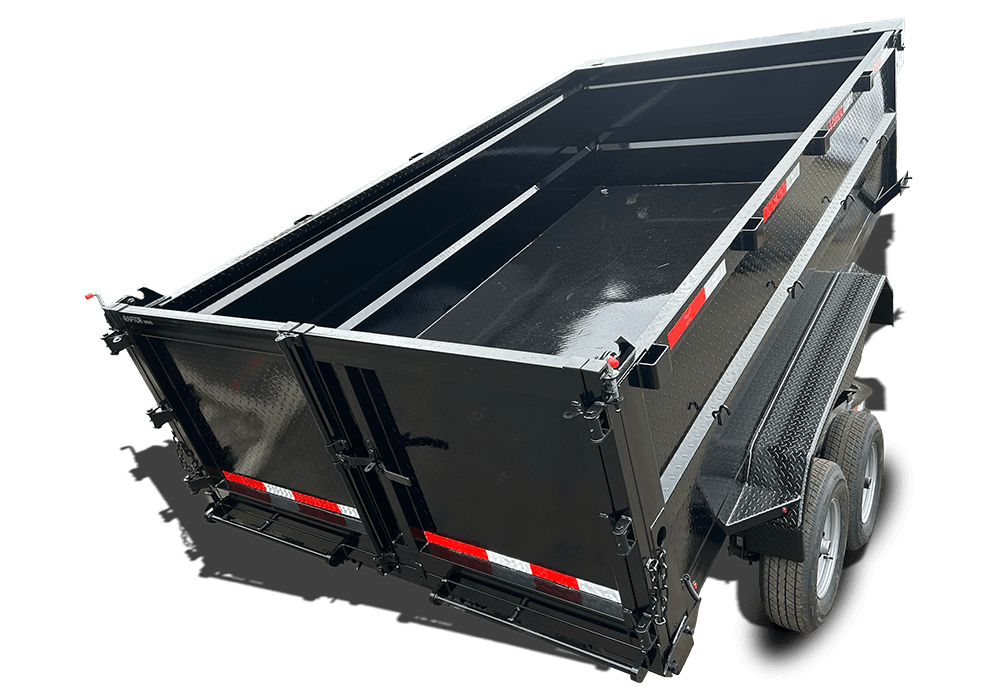

10K Raptor Low Profile Dump

Eagle TrailersDump

Models & Sizes

RDL24610TA3
6 ' x 10 ' Tandem Axle Low Pro Dump , 24 " Sides
Curb Wt
2405 lb
GVWR
10000 lb
RDL36610TA3
6 ' x 10 ' Tandem Axle Low Pro Dump , 36 " Sides
Curb Wt
2670 lb
GVWR
10000 lb
RDL48610TA3
6 ' x 10 ' Tandem Axle Low Pro Dump , 48 " Sides
Curb Wt
2860 lb
GVWR
10000 lb
RDL24612TA3
6' x 12' Tandem Axle Low Pro Dump, 24" Sides
Curb Wt
2595 lb
GVWR
10000 lb
RDL36612TA3
6' x 12' Tandem Axle Low Pro Dump, 36" Sides
Curb Wt
2860 lb
GVWR
10000 lb
RDL48612TA3
6' x 12' Tandem Axle Low Pro Dump, 48" Sides
Curb Wt
3050 lb
GVWR
10000 lb
RDL24710TA3
7' x 10' Tandem Axle Low Pro Dump, 24" Sides
Curb Wt
2525 lb
GVWR
10000 lb
RDL36710TA3
7' x 10' Tandem Axle Low Pro Dump, 36" Sides
Curb Wt
2795 lb
GVWR
10000 lb
RDL48710TA3
7' x 10' Tandem Axle Low Pro Dump, 48" Sides
Curb Wt
3070 lb
GVWR
10000 lb
RDL24712TA3
7' x 12' Tandem Axle Low Pro Dump, 24" Sides
Curb Wt
2740 lb
GVWR
10000 lb

Available Units

RDL24610TA3
$9,5006x10 · Eagle Black

Standard Features

6 " iBeam Tongue and Frame Construction
Trickle Charge Line From Tow Vehicle 15 " Wheels and Tires ( Radial )
Sealed Beam LED Lights
PPG Primer and Paint
Spare Tire Mount
4 D - Rings
Heavy Duty Diamond Plate Fenders
Dual Action Spreader Gate
Scissor Hoist
10 gauge ( - ) 24 " , 36 " or 48 " Walls , 8 ( - ) gauge Floors
3 " x 3/16 " Channel Cross Members
Ramp Pockets
Stored HD Ramp
Metal Cover Mesh Tarp Roll System
110 Volt Charger
Tarp Bar
Electric / Hydraulic Pump and Reservoir with Gravity Override

Popular Options

Spare Tire
Rear Stabilizer Jacks

Specifications

GAWR: 10400
Coupler Height: 13.5" to 21.5"
Deck Height: 30"
Main Frame: 6" Channel Frame 3" Channel Cross Members
Axle: 2 ( 5,200 # ) Posi - Lube Axle with Brakes
Floor: 8 Gauge (-) Steel Floor
Coupler: Adjustable 2 5/16 " Coupler
Dump Box Frame: 2 " x 5 " Rectangle Tube ( .120 " ) 1 1/5" x 1 1/2" Heavy Wall Tubing 16 " on Center Three-Way Spreader Gate 10 gauge ( - ) sides (Note: with Ramps 2" x 5" Dump Box Frame)
Electric Plug: 7-Way RV Molded Water Tight Plug

Available Colors

Primary Colors

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost)

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401
