We'll call or text you back with pricing
Models & Sizes

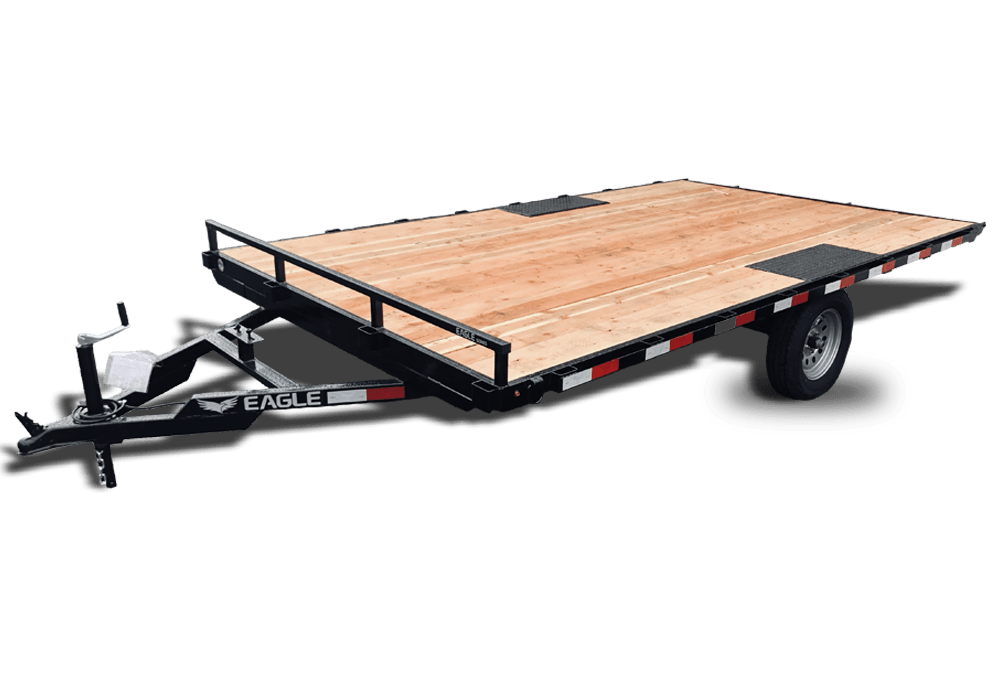

EDO612SA
6'x12 ' Single Axle Deckover
- Curb Wt
- 925 lb
- GVWR
- 2990 lb
EDO712SA
7 ' x 12 ' Single Axle Deckover
- Curb Wt
- 1000 lb
- GVWR
- 2990 lb
EDO8610SA
8'6 " x 10 ' Single Axle Deckover
- Curb Wt
- 1075 lb
- GVWR
- 2990 lb
EDO8612SA
8'6 " x 12 ' Single Axle Deckover
- Curb Wt
- 1150 lb
- GVWR
- 2990 lb
EDO8614SA
8'6 " x 14 ' Single Axle Deckover
- Curb Wt
- 1225 lb
- GVWR
- 2990 lb
EDO8616SA
8'6 " x 16 ' Single Axle Deckover ( 4 " Frame )
- Curb Wt
- 1440 lb
- GVWR
- 2990 lb
Standard Features
- 2 " Coupler with 2K Top Wind Tongue Jack
- 15 " Wheels & Tires ( Radial )
- Sealed Beam LED Lights
- PPG Primer and Paint
- 2 " x 6 " # 2 or Better Fir Decking
- Step Down Tube Tongue ( longer than competition )
- Stake Pockets
- Front Bump Rail
Popular Options
- Tongue Box Steel or Aluminum Diamond Plate
- Pressure Treated Decking
- Spare Tire and / or Mount
- Stored ATV Ramps
- Swing up Jack with Wheel or Pad
- Rub Rail over Stake Pockets
- 5,200lb . Axle with Brakes
- 4 " Frame Upgrade
Specifications
- GAWR
- 3500
- Coupler Height
- 18"
- Deck Height
- 31"
- Frame
- 3" Channel
- Axle
- 3,500# Posi-Lube Axle (Idler)
- Cross Members
- 2" x 2" Angle
- Decking
- 2 x 6 #2 or Better Fir Decking
- Bump Rail
- 1 1/2" x 1 1/2" Square Tube
- Coupler
- 2" A-Frame
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Jack
- 2K Top Wind Tongue Jack
- Lights
- Sealed Beam LED Lights
- Paint
- PPG Primer and Paint
- Ramps
- Optional
- Safety Chain
- 30" x 1/4" 5.2K Capacity
- Suspension
- Multi-Leaf Spring
- Tires
- ST 205/75 R15 Load Range C
- Tongue
- 2" x 3" Step Down Tube Tongue
- Wheels
- 15 x 5 5-4.5 Mod (Silver)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
