10K Dump

Back to Category

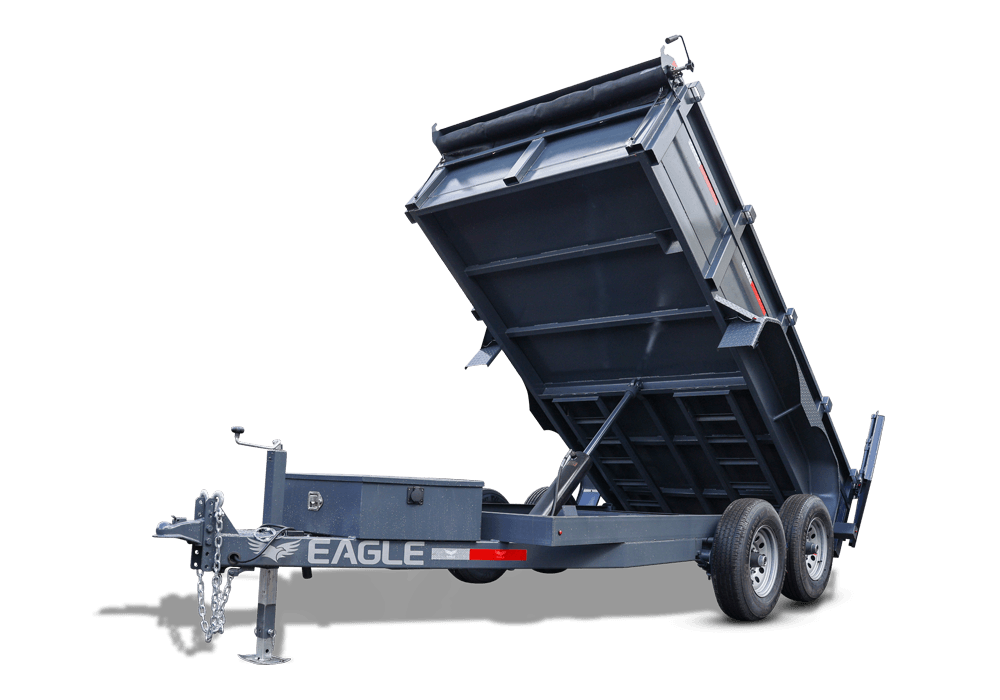

10K Dump

Models/Sizes (Pricing Varies Accordingly):

Model Code: ED510TA3

Size: 5 ' x 10 ' Tandem Axle Heavy Duty Dump w/Scissor Lift

Curb Weight: 2370

GVWR: 10000

Model Code: ED610TA3

Size: 6 ' x 10 ' Tandem Axle Heavy Duty Dump w/Scissor Lift

Curb Weight: 2475

GVWR: 10000

Model Code: ED612TA3

Size: 6 ' x 12 ' Tandem Axle Heavy Duty Dump w/Scissor Lift

Curb Weight: 2645

GVWR: 10000

Model Code: ED710TA3

Size: 7 ' x 10 ' Tandem Axle Heavy Duty Dump w/Scissor Lift

Curb Weight: 2595

GVWR: 10000

Model Code: ED712TA3

Size: 7 ' x 12 ' Tandem Axle Heavy Duty Dump w/Scissor Lift

Curb Weight: 2765

GVWR: 10000

In-Stock Units

Loading available inventory...

Standard Features:

  • Adjustable 2 5/16 " Coupler w / 7K Drop Leg Jack ( 10K Capacity )
  • Brakes Both Axles
  • 10 gauge ( - ) Floor and Side Walls
  • Stake Pockets
  • Tube Tongue ( Longer than competition )
  • Front and Rear Diamond Plate Fender Steps
  • 2 " Flat Bar Heavy Duty Tie Rail
  • Trickle Charge Line From Tow Vehicle
  • HD Deep Cycle Battery
  • 15 " Wheels & Tires ( Radial )
  • Direct Push 5 " Bore Cylinder
  • Sealed Beam LED Lights
  • Electric / Hydraulic USA Made Pump with Reservoir and Gravity Override
  • PPG Primer and Paint
  • Tarp Bar
  • Lockable Tongue Box

Popular Options (Additional Cost):

  • Stored Heavy Duty Ramps w/ 4 D-Rings
  • Spare Tire and Mount
  • Dual Action Spreader Gate
  • Metal Covered Mesh Roll Tarp System
  • Scissor Lift
  • Higher Sides or Extensions
  • 110 Volt Charger

Specifications:

GAWR10400
Deck Height28"
Main Frame5" Channel
4" Channel Cross Members and Reinforced Frame for Direct Push
5" Bore Hydraulic Cylinder
Axle2 ( 5,200 # ) Posi - Lube Axle with Brakes
Floor10 Gauge (-) Steel Floor
Sides10 Gauge (-)
Dump Box Frame2 " x 5 " Rectangle Tube ( .120 " )
2" x 2" Heavy Wall Tubing 16 " on Center
Barn Doors
10 gauge ( - ) sides
CouplerAdjustable 2 5/16 " Coupler
Fenders9 " x 72 " Diamond Plate Double Broke
HoistElectric / Hydraulic Direct Push Cylinder Hoist ( 45 ° dump angle or more )
Greasable Zerks
SuspensionMulti-Leaf Spring
Coupler HeightAdjustable
RampsOptional
Uprights2" x 4" Rectangle Tube
LightsSealed Beam LED D.O.T.
Electric Plug7-Way RV Molded Water Tight Plug
Wheels15 x 6 5-5.5 Mod (Silver)
PaintPPG Primer and Paint
FinishSteel is cleaned (wiped down) to ensure quality protective finish
TiresST 225/75 R15 Load Range D
Safety Chain36" x 5/16" 11.7K Capacity
Jack7K Drop Leg Tongue Jack
Tongue2" x 5" Rectangular Tube (.188 Thick Wall)

Available Colors:

Primary Colors:

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost):

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
