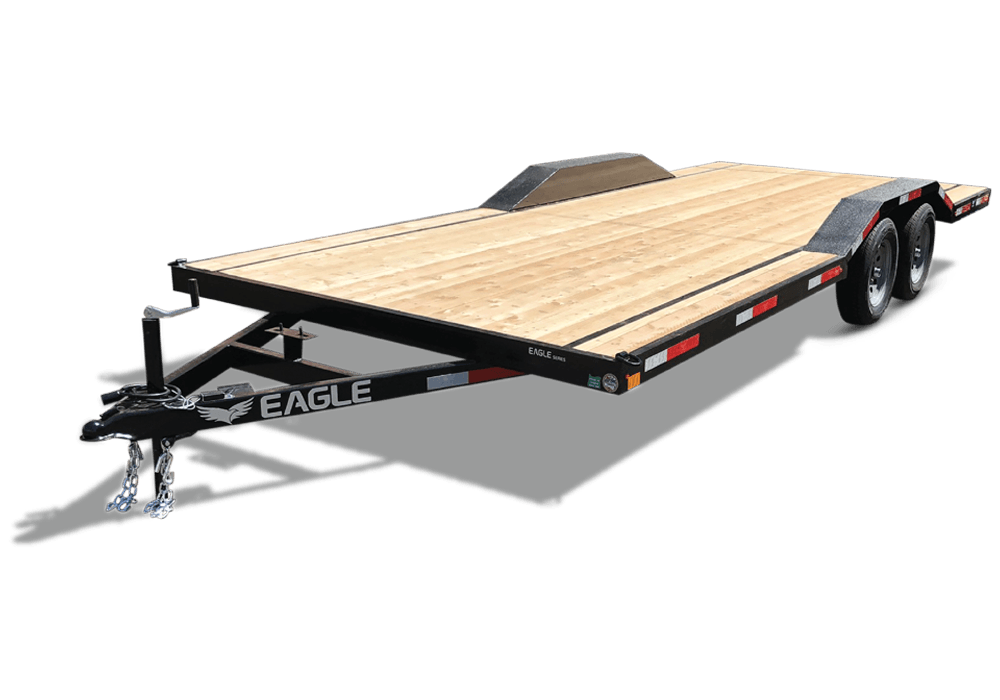

10K Rock Crawler Flatbed Drive Over Fenders with Outriggers

Back to Category

Models/Sizes (Pricing Varies Accordingly):

Model Code: EFBRC610TA3

Size: 6'x10 ' Tandem Axle Flatbed

Curb Weight: 1770

GVWR: 10000

Model Code: EFBRC612TA3

Size: 6 ' x 12 ' Tandem Axle Flatbed

Curb Weight: 1875

GVWR: 10000

Model Code: EFBRC710TA3

Size: 7 ' x 10 ' Tandem Axle Flatbed

Curb Weight: 1900

GVWR: 10000

Model Code: EFBRC712TA3

Size: 7 ' x 12 ' Tandem Axle Flatbed

Curb Weight: 2005

GVWR: 10000

Model Code: EFBRC714TA3

Size: 7 ' x 14 ' Tandem Axle Flatbed

Curb Weight: 2110

GVWR: 10000

Model Code: EFBRC716TA3

Size: 7 ' x 16 ' Tandem Axle Flatbed

Curb Weight: 2215

GVWR: 10000

Model Code: EFBRC718TA3

Size: 7 ' x 18 ' Tandem Axle Flatbed

Curb Weight: 2320

GVWR: 10000

Model Code: EFBRC720TA3

Size: 7 ' x 20 ' Tandem Axle Flatbed w / Stabilizer Jacks

Curb Weight: 2445

GVWR: 10000

Model Code: EFBRC722TA3

Size: 7 ' x 22 ' Tandem Axle Flatbed w / Stabilizer Jacks

Curb Weight: 2570

GVWR: 10000

In-Stock Units

Loading available inventory...

Standard Features:

2 5/16 " Adjustable Coupler
15 " Wheels & Tires ( Radial )
Sealed Beam LED Lights
PPG Primer and Paint
2 " x 6 " # 2 or Better Fir Decking
Tube Tongue ( longer than competition )
Brakes on Both Axles
6 " Bump Rail
5 ' Heavy Duty Stored Ramps
4 D - Rings
1/8 " Diamond Plate Surface Outriggers
10 " Drive Over Fenders ( channel ) , 82 " Between
Send Texture over Fenders
7K Drop Leg Tongue Jack

Popular Options (Additional Cost):

Tongue Box Steel or Aluminum Diamond Plate
Pressure Treated Decking
Spare Tire and / or Mount
Beavertail
Steel Decking Diamond Plate / Smooth / Sand Texture
Full Length Rub Rail

Specifications:

GAWR	10400
Deck Height	23"
Frame	5" Channel
Axle	(2) 5,200# Posi-Lube Axle w/ Brakes
Cross Members	3" Channel
Decking	2 x 6 #2 or Better Fir Decking
Coupler	Adjustable 2 5/16" Coupler
Fenders	82" Between Fenders Drive on/Drive off 10" Channel
Suspension	Multi-Leaf Spring
Coupler Height	17"
Ramps	5' Heavy Duty Stored
Lights	Sealed Beam LED Lights
Electric Plug	7-Way RV Molded Water Tight Plug
Wheels	15 x 6 6-5.5 Mod (Silver)
Paint	PPG Primer and Paint
Finish	Steel is cleaned (wiped down) to ensure quality protective finish
Tires	ST 225/75 R15 Load Range D
Safety Chain	36" x 5/16" 11.7K Capacity
Jack	7K Drop Leg Tongue Jack
Tongue	2" x 5" Rectangular Tube
Bump Rail	2" x 2" Rectangle Tube, 6" High

Available Colors:

Primary Colors:

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost):

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
