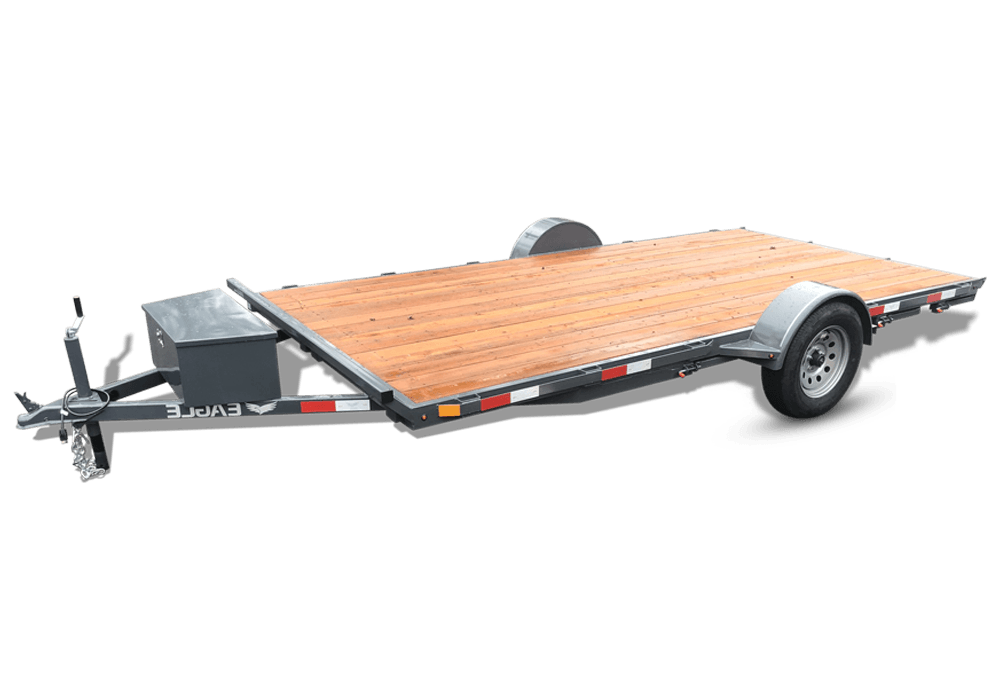

ATV Trailer

Back to Category

Models/Sizes (Pricing Varies Accordingly):

Model Code: EATV510SA

Size: 5’ x 10’ Single Axle ATV

Curb Weight: 810

GVWR: 2990

Model Code: EATV512SA

Size: 5’ x 12’ Single Axle ATV

Curb Weight: 870

GVWR: 2990

Model Code: EATV513SA

Size: 5’ x 13’ Single Axle ATV

Curb Weight: 900

GVWR: 2990

Model Code: EATV610SA

Size: 6’ x 10’ Single Axle ATV

Curb Weight: 860

GVWR: 2990

Model Code: EATV612SA

Size: 6’ x 12’ Single Axle ATV

Curb Weight: 910

GVWR: 2990

Model Code: EATV613SA

Size: 6’6” x 13’ Single Axle ATV

Curb Weight: 2990

GVWR: 925

Model Code: EATV6610SA

Size: 6’6” x 10’ Single Axle ATV

Curb Weight: 855

GVWR: 2990

Model Code: EATV6612SA

Size: 6’6” x 12’ Single Axle ATV

Curb Weight: 930

GVWR: 2990

Model Code: EATV6613SA

Size: 6’6” x 13’ Single Axle ATV

Curb Weight: 975

GVWR: 2990

Model Code: EATV6614SA

Size: 6’6” x 14’ Single Axle ATV

Curb Weight: 1015

GVWR: 2990

Model Code: EATV6616SA

Size: 6’6” x 16’ Single Axle ATV

Curb Weight: 1130

GVWR: 2990

In-Stock Units

Loading available inventory...

Standard Features:

2” Coupler with 2K Top Wind Tongue Jack
15” Wheels & Tires (Radial)
Sealed Beam LED Lights
PPG Primer and Paint
2” x 6” #2 or Better Fir Decking
Tube Tongue (longer than competition)
Stake Pockets
Rub Rail
Front Fender Step with Light
Expanded Metal 13” Wide ATV Ramps

Popular Options (Additional Cost):

Tongue Box Steel or Aluminum Diamond Plate
Pressure Treated Decking
4” Frame Upgrade
Swing up Tongue Jack with Wheel or Pad
5,200lb. Axle with Brakes
Jeep Style Diamond Plate Fenders

Specifications:

GAWR	3500
Deck Height	19"
Frame	3" Channel
Axle	3,500# Posi-Lube Axle (Idler)
Cross Members	2" x 2" Angle
Decking	2 x 6 #2 or Better Fir Decking
Coupler	2" A-Frame Coupler
Fenders	9" x 32" with Back
Suspension	Multi-Leaf Spring
Coupler Height	16"
Ramps	5' x 13" x 1 1/2" Angle with Expanded Metal Top Stored Underneath
Lights	Sealed Beam LED Lights
Electric Plug	Flat 4-Way Molded Water Tight Plug
Wheels	15 x 5 5-4.5 Mod (Silver)
Paint	PPG Primer and Paint
Finish	Steel is cleaned (wiped down) to ensure quality protective finish
Tires	ST 205/75 R15 Load Range C
Safety Chain	30" x 1/4" 5.2K Capacity
Jack	2K Top Wind Tongue Jack
Tongue	2" x 3" Rectangular Tube
Bump Rail	1 1/2" x 1 1/2" Square Tube, 6" High

Available Colors:

Primary Colors:

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost):

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
