Models & Sizes
ED508TA2

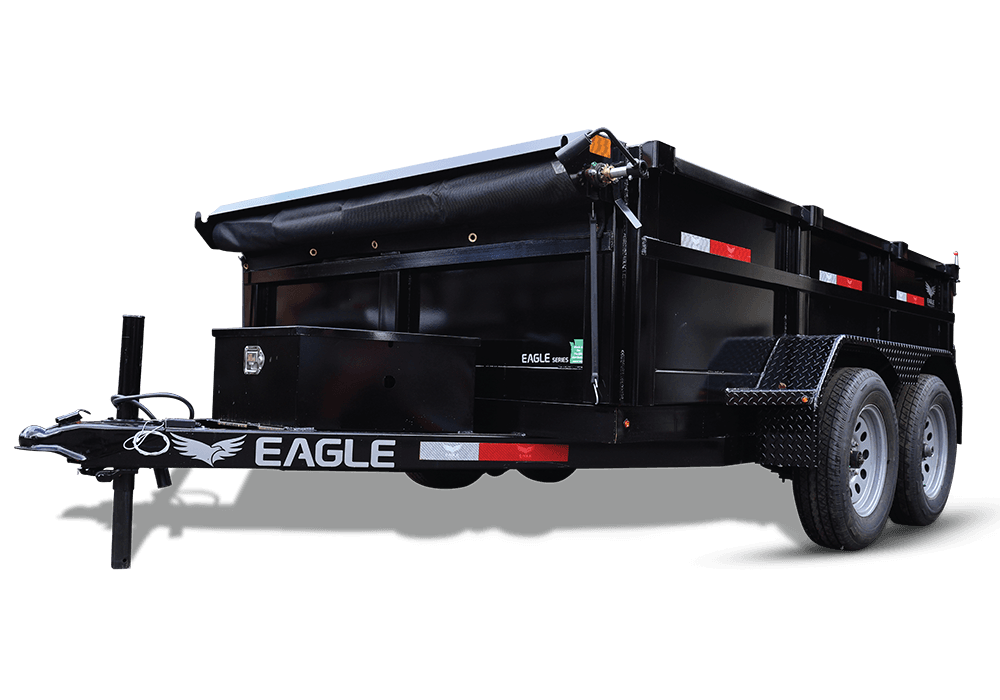

5 ' x 8 ' Tandem Axle Heavy Duty Dump
- Curb Wt
- 2110 lb
- GVWR
- 7000 lb
ED608TA2
6 ' x 8 ' Tandem Axle Heavy Duty Dump w/ 43" Sides and 15K Lift
- Curb Wt
- 2450 lb
- GVWR
- 7000 lb
ED510TA2
5 ' x 10 ' Tandem Axle Heavy Duty Dump
- Curb Wt
- 2200 lb
- GVWR
- 7000 lb
ED610TA2
6 ' x 10 ' Tandem Axle Heavy Duty Dump
- Curb Wt
- 2270 lb
- GVWR
- 7000 lb
ED612TA2
6 ' x 12 ' Tandem Axle Heavy Duty Dump
- Curb Wt
- 2440 lb
- GVWR
- 7000 lb
ED710TA2
7 ' x 10 ' Tandem Axle Heavy Duty Dump
- Curb Wt
- 2400 lb
- GVWR
- 7000 lb
ED712TA2
7 ' x 12 ' Tandem Axle Heavy Duty Dump
- Curb Wt
- 2580 lb
- GVWR
- 7000 lb
Available Units
Standard Features
- 25/16 " Coupler w / 2K Top Wind Jack
- Brakes Both Axles
- 10 gauge ( - ) Floor and Side Walls
- Tread Plate Fenders
- Stake Pockets
- Tube Tongue ( Longer than competition )
- Front and Rear Diamond Plate Fender Steps
- 2 " Flat Bar Heavy Duty Tie Rail
- Trickle Charge Line From Tow Vehicle
- HD Deep Cycle Battery
- 15 " Wheels & Tires ( Radial )
- Direct Push 5 " Bore Hydraulic Cylinder
- Sealed Beam LED Lights
- Electric / Hydraulic Pump with Reservoir and Gravity
- Override
- PPG Primer and Paint
- Tarp Bar
- Lockable Tongue Box
Popular Options
- Stored Heavy Duty Ramps w/ 4 D-Rings
- Spare Tire and Spare Mount
- Dual Action Spreader Gate
- Metal Cover Mesh Roll Tarp System
- Scissor Lift ILO Direct Push Cylinder
- Higher Sides
- 110 Volt Charger
Specifications
- GAWR
- 7000
- Coupler Height
- 18"
- Deck Height
- 28"
- Main Frame
- 4" Channel 3" Channel Cross Members and Reinforced Frame for Direct Push 5" Bore Hydraulic Cylinder
- Axle
- 2 ( 3,500 # ) Posi - Lube Axle with Brakes
- Floor
- 10 Gauge (-) Steel Floor
- Sides
- 10 Gauge (-)
- Coupler
- 2 5/16 " Coupler
- Dump Box Frame
- 2 " x 4 " Rectangle Tube ( .120 " ) 1 ½ " x 1½ " Heavy Wall Tubing 16 " on Center Barn Doors 10 gauge ( - ) sides ( Note : with ramps 2 " x 5 " dump box frame )
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Fenders
- 9 " x 72 " Diamond Plate Double Broke
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Hoist
- Electric / Hydraulic Direct Push Cylinder Hoist ( 45 ° dump angle or more ) Greasable Zerks
- Jack
- 2K Top Wind
- Lights
- Sealed Beam LED D.O.T.
- Paint
- PPG Primer and Paint
- Ramps
- Optional
- Safety Chain
- 5/16" x 30" 7.6K Capacity
- Suspension
- Multi-Leaf Spring
- Tires
- ST 205/75 R15 Load Range C
- Tongue
- 2" x 4" Rectangular Tube (.120 Thick Wall)
- Uprights
- 2" x 4" Rectangle Tube
- Wheels
- 15 x 5 5-4.5 Mod (Silver)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
