Models & Sizes
EETB714TA2

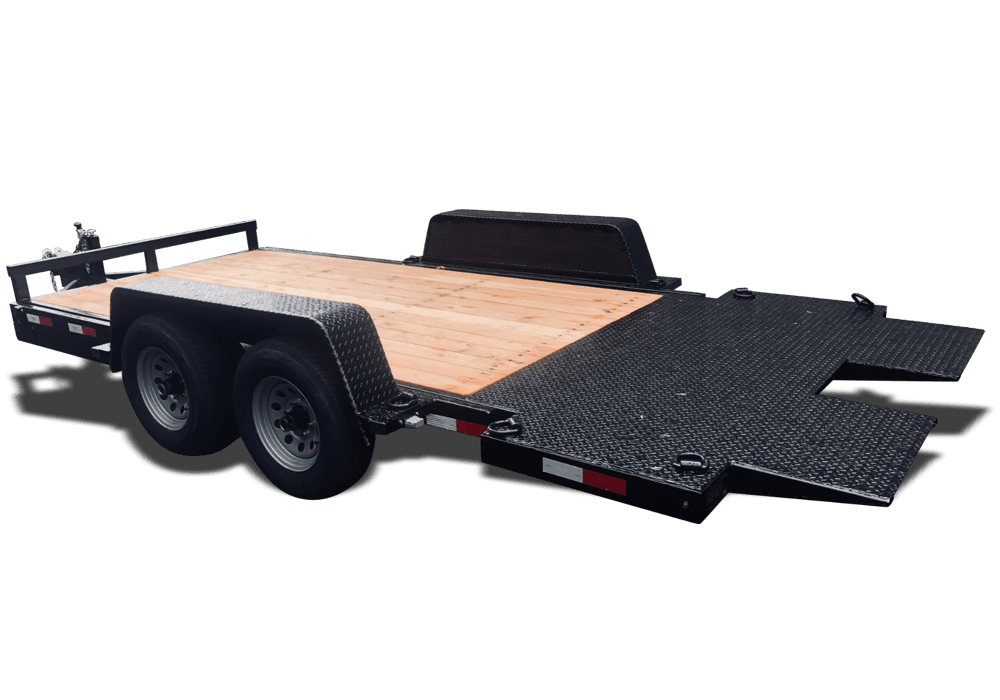

7 ' x 14 ' Tandem Axle Equipment Tilt
- Curb Wt
- 2480 lb
- GVWR
- 7000 lb
EETB716TA2
7 ' x 16 ' Tandem Axle Equipment Tilt
- Curb Wt
- 2590 lb
- GVWR
- 7000 lb
EETB714TA3
7 ' x 14 ' Tandem Axle Equipment Tilt
- Curb Wt
- 2840 lb
- GVWR
- 10000 lb
EETB716TA3
7 ' x 16 ' Tandem Axle Equipment Tilt
- Curb Wt
- 3090 lb
- GVWR
- 10000 lb
Standard Features
- Adjustable 2 5/16 " Coupler
- 15 " Wheels & Tires ( Radial )
- Sealed Beam LED Lights
- Tube Tongue ( longer than competition )
- 7K Drop Leg Jack
- Brakes on Both Axles
- PPG Primer and Paint
- 5 ' Steel Rear Full Approach Plate
- 4 D - Rings
- Heavy Duty Diamond Plate Fenders
- 2 x 6 # 2 or Better Fir Decking
- Frame Inside of Frame Construction
Popular Options
- Pressure Treated Decking
- Tongue Box Steel or Aluminum Diamond Plate
- Spare Tire and / or Mount ( rear mounting )
- Cushioning Hydraulic Cylinder with Lock out Valve
- Cushioning Hydraulic Cylinder
- Tower Winch Mount / Bump Rail Mount
- Steel Decking Diamond Plate / Smooth / Sand Texture
Specifications
- GAWR2
- 7,000# / 9,990#
- Coupler Height
- Adjustable
- Deck Height
- 18"
- Frame
- 2" x 5" Tube
- Axle
- (2) 5,200# Posi-Lube, 4" Drop Axle with Brakes (4" Drop)
- Cross Members
- 3" Channel
- Decking
- 2 x 6 #2 or Better Fir Decking
- Bump Rail
- 2" x 2" Tube, 6" High
- Coupler
- Adjustable 2 5/16" Coupler
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Fenders
- 10" x 72" Diamond Plate
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Jack
- 7K Drop Leg Jack
- Lights
- Sealed Beam LED Lights
- Paint
- PPG Primer and Paint
- Ramps
- Full Width Rear Approach Plates
- Safety Chain
- 30" x 5/16" 7.6K Capacity
- Suspension
- Multi-Leaf Spring
- Tires
- ST 205/75 R15 Load Range C (7K) ST 225/75 R15 Load Range D (10K)
- Tongue
- 2" x 5" Rectangular Tube
- Wheels
- 15 x 5 5-4.5 Mod (Silver) (7K) 15 x 6 6 - 5.5 Mod (Silver) (10K)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
