Models & Sizes
BHST718TA5

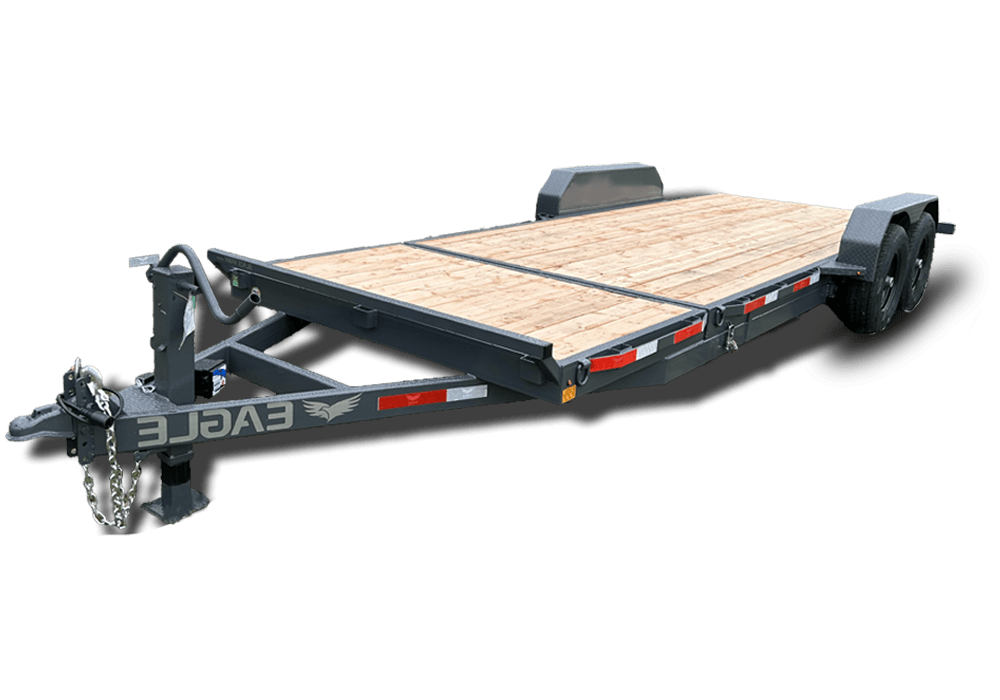

7 ' x 18 ' Tandem Axle Split Bed Tilt
- Curb Wt
- 2725 lb
- GVWR
- 14000 lb
BHST720TA5
7 ' x 20 ' Tandem Axle Split Bed Tilt
- Curb Wt
- 2875 lb
- GVWR
- 14000 lb
BHST722TA5
7 ' x 22 ' Tandem Axle Split Bed Tilt
- Curb Wt
- 3025 lb
- GVWR
- 14000 lb
BHST724TA5
7 ' x 24 ' Tandem Axle Split Bed Tilt
- Curb Wt
- 3175 lb
- GVWR
- 14000 lb
Available Units
Standard Features
- Adjustable 2 5/16 " Coupler
- 16 " Wheels & Tires ( Radial )
- Sealed Beam LED Lights
- PPG Primer and Paint
- 4 D - Rings
- 2 " x 6 " # 2 or Better Fir Decking
- Tube Tongue ( longer than competition )
- 12K Drop Leg Tongue Jack
- Brakes on Both Axles
- Spare Tire Mount
- Heavy Duty Diamond Plate Fenders
- Cushioning Hydraulic Cylinder
- 30 " Steel Rear Approach in Addition to Length
- Stake Pockets and Heavy Duty Rub Rail
- Two Latches or Single Hand Lever Latch
- Front Diamond Plate Fender Steps
- 83 " Between Fenders
- Note : Trailer length specified included both stationary and tilt portion of the deck . Example : BHST722TAS could be ( 1 ) 4 ' stationary + 18 ' tilt or ( 2 ) 6 ' stationary + 16 ' tilt .
Popular Options
- Tongue Box Steel or Aluminum Diamond Plate
- Tower Winch Mount / Bed Mount
- 1/8 " Steel Diamond Plate or Smooth
- Removable Fenders
- Pressure Treated Decking
- Spare Tire Mount
Specifications
- GAWR
- 14000
- Coupler Height
- Adjustable
- Deck Height
- 22"
- Frame
- 6" Channel
- Axle
- (2) 7,000# Posi-Lube Axles with Brakes
- Cross Members
- 3" Channel, 16" on Center
- Decking
- 2 x 6 #2 or Better Fir Decking
- Bump Rail
- 2" x 2" Rectangle Tube, 6" High
- Coupler
- Adjustable 2 5/16" Coupler
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Fenders
- 81 1/2" Between Fenders 10" x 72" Diamond Plate
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Jack
- 12K Drop Leg Tongue Jack
- Lights
- Sealed Beam LED Lights
- Paint
- PPG Primer and Paint
- Ramps
- 30" Steel Rear Approach
- Safety Chain
- 36" x 5/8" 16.2K Capacity
- Suspension
- Multi-Leaf Spring
- Tires
- ST 235/80 R16 Load Range E
- Tongue
- 2" x 6" Rectangular Tube
- Wheels
- 16 x 6 8-6.5 Mod (Black)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
