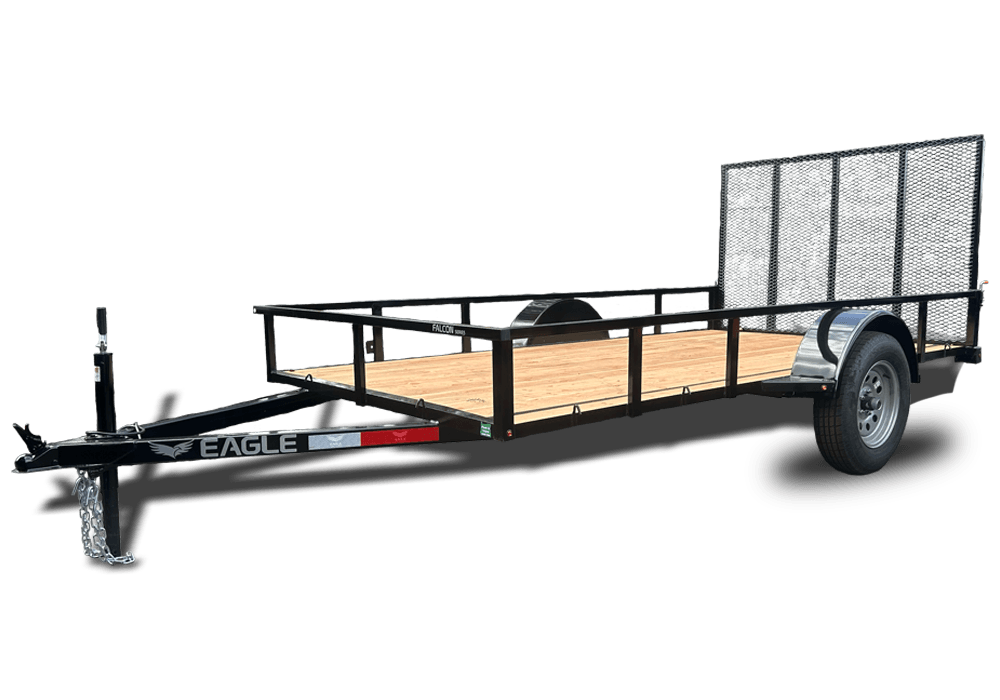

Falcon Sport Single Axle

Back to Category

Models/Sizes (Pricing Varies Accordingly):

Model Code: FS406SA

Size: 4’ x 6’ Single Axle Falcon Angle

Curb Weight: 525

GVWR: 2990

Model Code: FS408SA

Size: 4’ x 8’ Single Axle Falcon Angle

Curb Weight: 565

GVWR: 2990

Model Code: FS508SA

Size: 5’ x 8’ Single Axle Falcon Angle

Curb Weight: 625

GVWR: 2990

Model Code: FS510SA

Size: 5’ x 10’ Single Axle Falcon Angle

Curb Weight: 685

GVWR: 2990

Model Code: FS512SA

Size: 5’ x 12’ Single Axle Falcon Angle

Curb Weight: 740

GVWR: 2990

Model Code: FS610SA

Size: 6’ x 10’ Single Axle Falcon Angle

Curb Weight: 790

GVWR: 2990

Model Code: FS612SA

Size: 6’ x 12’ Single Axle Falcon Angle

Curb Weight: 850

GVWR: 2990

Model Code: FS6610SA

Size: 6’6” x 10’ Single Axle Falcon Angle

Curb Weight: 810

GVWR: 2990

Model Code: FS6612SA

Size: 6’6” x 12’ Single Axle Falcon Angle

Curb Weight: 875

GVWR: 2990

Model Code: FS6613SA

Size: 6’6” x 13’ Single Axle Falcon Angle

Curb Weight: 920

GVWR: 2990

Model Code: FS714SA

Size: 7’ x 14’ Single Axle Falcon Angle

Curb Weight: 1025

GVWR: 2990

In-Stock Units

Loading available inventory...

Standard Features:

2” Coupler with 2K Top Wind Tongue Jack
15” Wheels & Tires (Radial)
Sealed Beam LED Lights
PPG Primer and Paint
2” x 6” #2 or Better Fir Decking
Tube Tongue (longer than competition)
Front Fender Step with Light
J-Hook Tie Downs (4 per side, 1 in front)
4’ Rear Ramp Gate
Fender High 1 1/2” Square Tube Top Rail

Popular Options (Additional Cost):

Tongue Box Steel or Aluminum Diamond Plate
Pressure Treated Decking
Swing up Tongue Jack with Wheel
Spare Tire and/or Mount
Fender High Expanded Metal or 16 gauge Solid Sides
Side Ramp Gate Front Passenger Side

Specifications:

GAWR	3500
Deck Height	18"
Frame	2" x 2" Angle
Axle	3,500# Posi-Lube Axles (Idler)
Cross Members	2" x 2" Angle
Decking	2 x 6 #2 or Better Fir Decking
Coupler	2" A-Frame Coupler
Fenders	9" x 32" with Back
Suspension	Multi-Leaf Spring
Coupler Height	16"
Ramps	48" x 1 1/2" x 1 1/2"
Uprights	2" x 1" Tube
Lights	Sealed Beam LED Lights
Electric Plug	Flat 4-Way Molded Water Tight Plug
Wheels	15 x 5 5-4.5 Mod (Silver)
Paint	PPG Primer and Paint
Finish	Steel is cleaned (wiped down) to ensure quality protective finish
Tires	ST 205/75 D15 Load Range C
Safety Chain	30" x 1/4" 5.2K Capacity
Jack	2K Top Wind Tongue Jack
Tongue	2" x 3" Rectangular Tube
Top Rail	1 1/2" x 1 1/2" Square Tube, 6" High

Available Colors:

Primary Colors:

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost):

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
