Models & Sizes
EPT510SA3

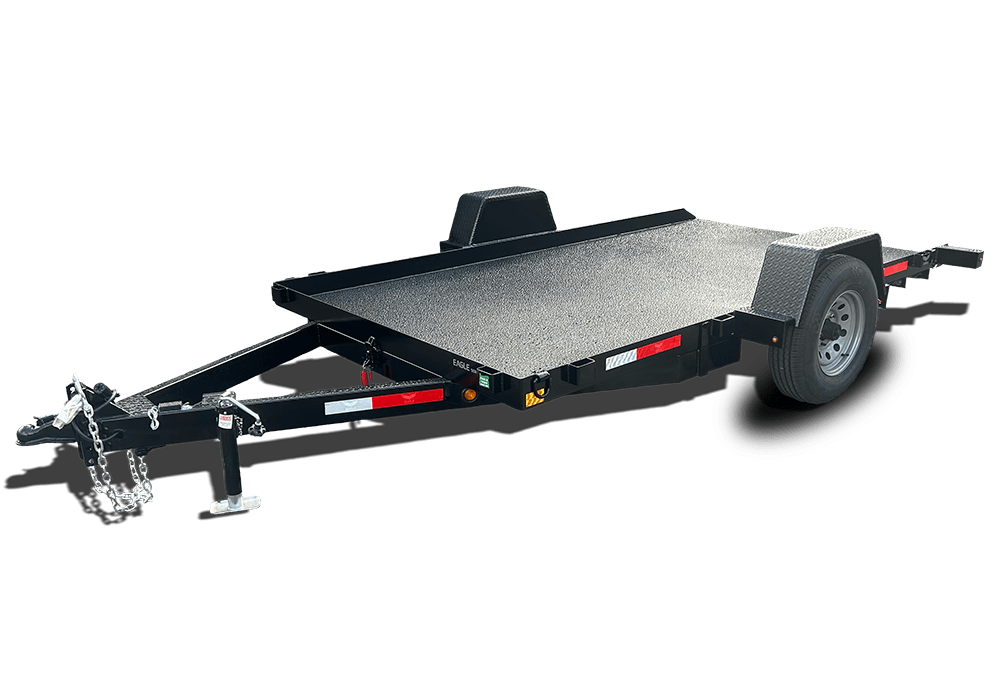

5 ' x 10 ' Single Axle Pan Tilt
- Curb Wt
- 1215 lb
- GVWR
- 5200 lb
EPT610SA3
6 ' x 10 ' Single Axle Pan Tilt
- Curb Wt
- 1295 lb
- GVWR
- 5200 lb
EPT612SA3
6 ' x 12 ' Single Axle Pan Tilt
- Curb Wt
- 1365 lb
- GVWR
- 5200 lb
EPT710SA3
7 ' x 10 ' Single Axle Pan Tilt
- Curb Wt
- 1415 lb
- GVWR
- 5200 lb
EPT712SA3
7 ' x 12 ' Single Axle Pan Tilt
- Curb Wt
- 1485 lb
- GVWR
- 5200 lb
Available Units
Standard Features
- Adjustable 2 5/16 " Coupler
- 15 " Wheels & Tires ( Radial )
- Sealed Beam LED Lights
- PPG Primer and Paint
- 4 D - Rings
- 3/16 " Smooth Plate Floor
- Tube Tongue ( longer than competition )
- 5K Swing Up Tongue Jack with Pad
- Brakes on Axle
- Torsion Axle
- Heavy Duty Diamond Plate Fenders
- Cushioning Hydraulic Cylinder
- Over Center Latch with Release
- Non - Skid Sand Texture Surface
Popular Options
- Tongue Box Steel or Aluminum Diamond Plate
- Cushioning Hydraulic Cylinder with Lock out Valve
- Tower Winch Mount / Front Mount
- Diamond Plate Surface
Specifications
- GAWR
- 5200
- Deck Height
- 13"
- Frame
- 5" x 3" Angle
- Axle
- 5,200# Torsion Axle with Brake
- Cross Members
- 3" Channel
- Decking
- 3/16" Steel Floor
- Coupler
- Adjustable 2 5/16" Coupler
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Fenders
- 10" x 32" Diamond Plate
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Jack
- 5K Swing Up Tongue Jack with Pad
- Lights
- Sealed Beam LED Lights
- Paint
- PPG Primer and Paint
- Safety Chain
- 36" x 5/16" 11.7K Capacity
- Suspension
- Torsion
- Tires
- ST 225/75 R15 Load Range D
- Tongue
- 2" x 5" Rectangular Tube
- Wheels
- 15 x 6 6-5.5 Mod (Silver)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
