Models & Sizes
ED508SA3

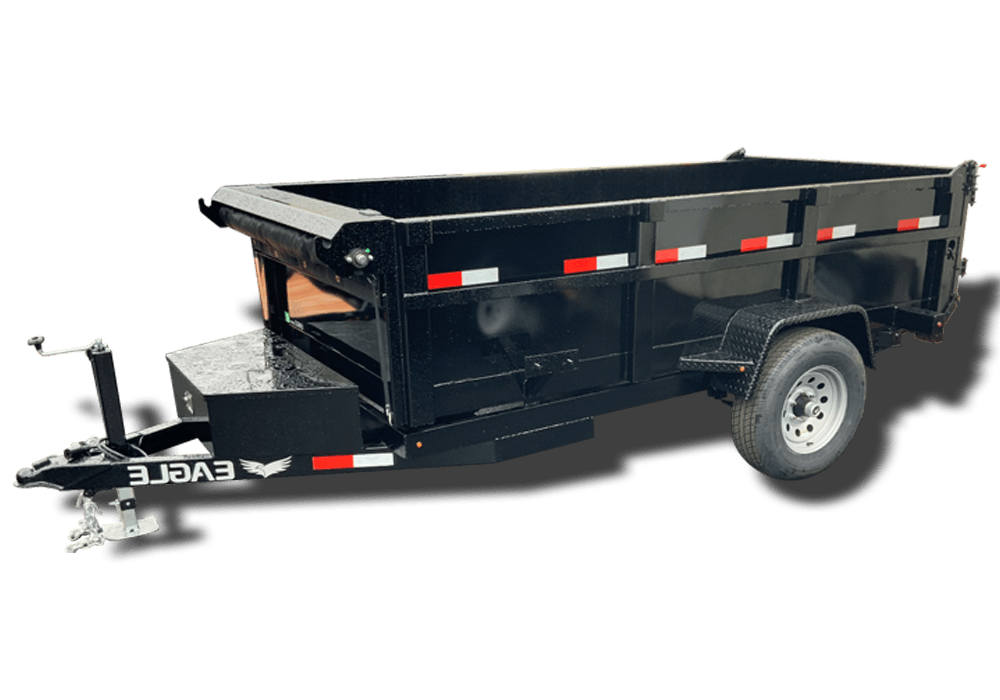

5 ' x 8 ' Single Axle Heavy Duty Dump
- Curb Wt
- 1540 lb
- GVWR
- 5200 lb
ED510SA3
5 ' x 10 ' Single Axle Heavy Duty Dump
- Curb Wt
- 1625 lb
- GVWR
- 5200 lb
ED610SA3
6 ' x 10 ' Single Axle Heavy Duty Dump
- Curb Wt
- 1690 lb
- GVWR
- 5200 lb
Available Units
Standard Features
- 2 5/16 " Coupler w / 2K Top Wind Tongue Jack
- Brakes on Axle
- PPG Primer & Paint
- Tube Tongue ( Longer than competition )
- Stake Pockets
- Front and Rear Diamond Plate Fender Steps
- 2 " Flat Bar Heavy Duty Tie Rail
- Trickle Charge Line From Tow Vehicle
- 15 " Wheels & Tires ( Radial )
- Direct Push 5" Bore Hydraulic Cylinder
- Sealed Beam LED Lights
- Electric / Hydraulic Pump with Reservoir and Gravity
- Override
- Tarp Bar
- Lockable Tongue Box
Popular Options
- Stored Heavy Duty Ramps w/ 4 D-Rings
- Spare Tire and Spare Mount
- Dual Action Spreader Gate
- Mesh Roll Tarp w/ Metal Cover
- Scissor Lift ILO 5" Direct Push Cylinder
- Higher Sides - 31" or 43"
- Fold Down and/or Removable Higher SIdes
- Side Foot Step
- 110 Volt Charger
- Extensions - 2'
Specifications
- GAWR
- 5200
- Coupler Height
- 18"
- Deck Height
- 25"
- Main Frame
- 4" Channel 3" Channel Cross Members and Reinforced Frame for Direct Push 5" Bore Hydraulic Cylinder
- Axle
- 5,200 # Posi - Lube Axle with Brakes
- Floor
- 10 Gauge (-) Steel Floor
- Sides
- 10 Gauge (-)
- Coupler
- 2 5/16 " Coupler
- Dump Box Frame
- 2 " x 4 " Rectangle Tube ( .120 " ) 1 ½ " x 1½ " Heavy Wall Tubing 16 " on Center Barn Doors 10 gauge ( - ) sides ( Note : with ramps 2 " x 5 " dump box frame )
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Fenders
- 10" x 32"
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Hoist
- Electric / Hydraulic Direct Push Cylinder Hoist ( 45 ° dump angle or more ) Greasable Zerks
- Jack
- 2K Top Wind Tongue Jack
- Lights
- Sealed Beam LED D.O.T.
- Paint
- PPG Primer and Paint
- Ramps
- Optional
- Safety Chain
- 5/16" x 30" 5.2K Capacity
- Suspension
- Multi-Leaf Spring
- Tires
- ST 225/75 R15 Load Range D
- Tongue
- 2" x 4" Rectangular Tube
- Uprights
- 2" x 4" Rectangle Tube
- Wheels
- 15 x 6 6-5.5 Mod (Silver)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
