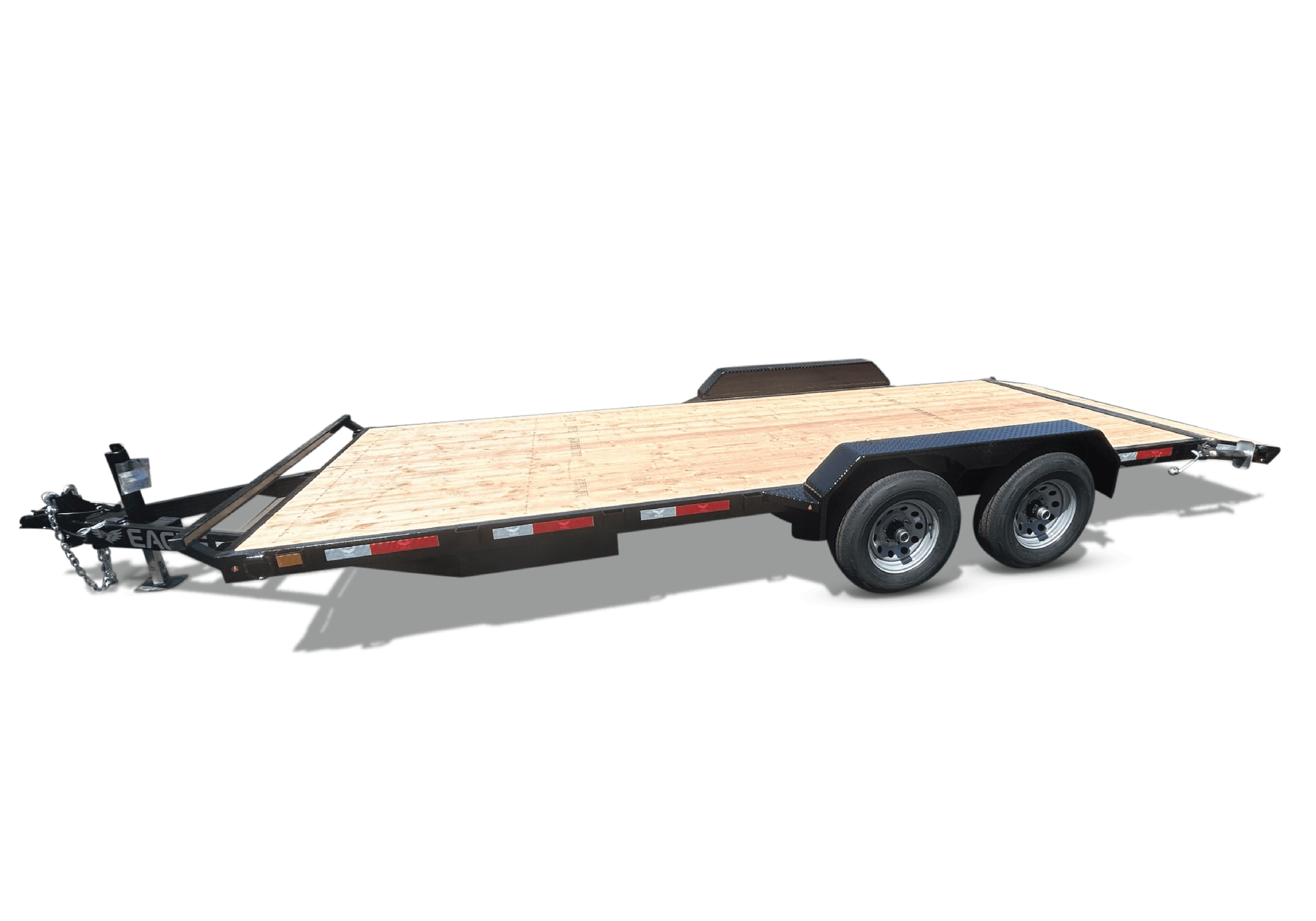

10K Auto/Equipment Flatbed

Back to Category

Models/Sizes (Pricing Varies Accordingly):

Model Code: EFB610TA3

Size: 6'x10 ' Tandem Axle Flatbed

Curb Weight: 1460

GVWR: 10000

Model Code: EFB612TA3

Size: 6 ' x 12 ' Tandem Axle Flatbed

Curb Weight: 1575

GVWR: 10000

Model Code: EFB710TA3

Size: 7 ' x 10 ' Tandem Axle Flatbed

Curb Weight: 1600

GVWR: 10000

Model Code: EFB712TA3

Size: 7 ' x 12 ' Tandem Axle Flatbed

Curb Weight: 1705

GVWR: 10000

Model Code: EFB714TA3

Size: 7 ' x 14 ' Tandem Axle Flatbed

Curb Weight: 1810

GVWR: 10000

Model Code: EFB716TA3

Size: 7 ' x 16 ' Tandem Axle Flatbed

Curb Weight: 1915

GVWR: 10000

Model Code: EFB718TA3

Size: 7 ' x 18 ' Tandem Axle Flatbed

Curb Weight: 2010

GVWR: 10000

Model Code: EFB720TA3

Size: 7 ' x 20 ' Tandem Axle Flatbed w / Stabilizer Jacks

Curb Weight: 2145

GVWR: 10000

Model Code: EFB722TA3

Size: 7 ' x 22 ' Tandem Axle Flatbed w / Stabilizer Jacks

Curb Weight: 2270

GVWR: 10000

In-Stock Units

Loading available inventory...

Standard Features:

25/16 " Adjustable Coupler
15 " Wheels & Tires ( Radial )
Sealed Beam LED Lights
PPG Primer and Paint
2 " x 6 " # 2 or Better Fir Decking
Tube Tongue ( longer than competition )
Brakes on Both Axles
6 " Bump Rail
5 ' Heavy Duty Stored Ramps
4 D - Rings
Heavy Duty Diamond Plate Fenders
84 " Between Fenders

Popular Options (Additional Cost):

Tongue Box Steel or Aluminum Diamond Plate
Pressure Treated Decking
Spare Tire and / or Mount
Beavertail
Rear Stabilizer Jacks
Steel Decking Diamond Plate / Smooth / Sand Texture
Removable Fender
1.5" x 1.5" Fender High Rectangle or Round Tube Top Rail
2" x 2" Fender High Rectangle or Round Tube Top Rail

Specifications:

GAWR	10400
Deck Height	23"
Frame	5" Channel
Axle	(2) 5,200# Posi-Lube Axle w/ Brakes
Cross Members	3" Channel
Decking	2 x 6 #2 or Better Fir Decking
Coupler	Adjustable 2 5/16" Coupler
Fenders	9" x 72" Heavy Duty Double Broke Diamond Plate
Suspension	Multi-Leaf Spring
Coupler Height	17"
Ramps	5' Heavy Duty Stored
Lights	Sealed Beam LED Lights
Electric Plug	7-Way RV Molded Water Tight Plug
Wheels	15 x 6 6-5.5 Mod (Silver)
Paint	PPG Primer and Paint
Finish	Steel is cleaned (wiped down) to ensure quality protective finish
Tires	ST 225/75 R15 Load Range D
Safety Chain	36" x 5/16" 11.7K Capacity
Jack	7K Drop Leg Tongue Jack
Tongue	2" x 5" Rectangular Tube
Bump Rail	2" x 2" Rectangle Tube, 6" High

Available Colors:

Primary Colors:

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost):

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
