Models & Sizes
RDL24714TA5

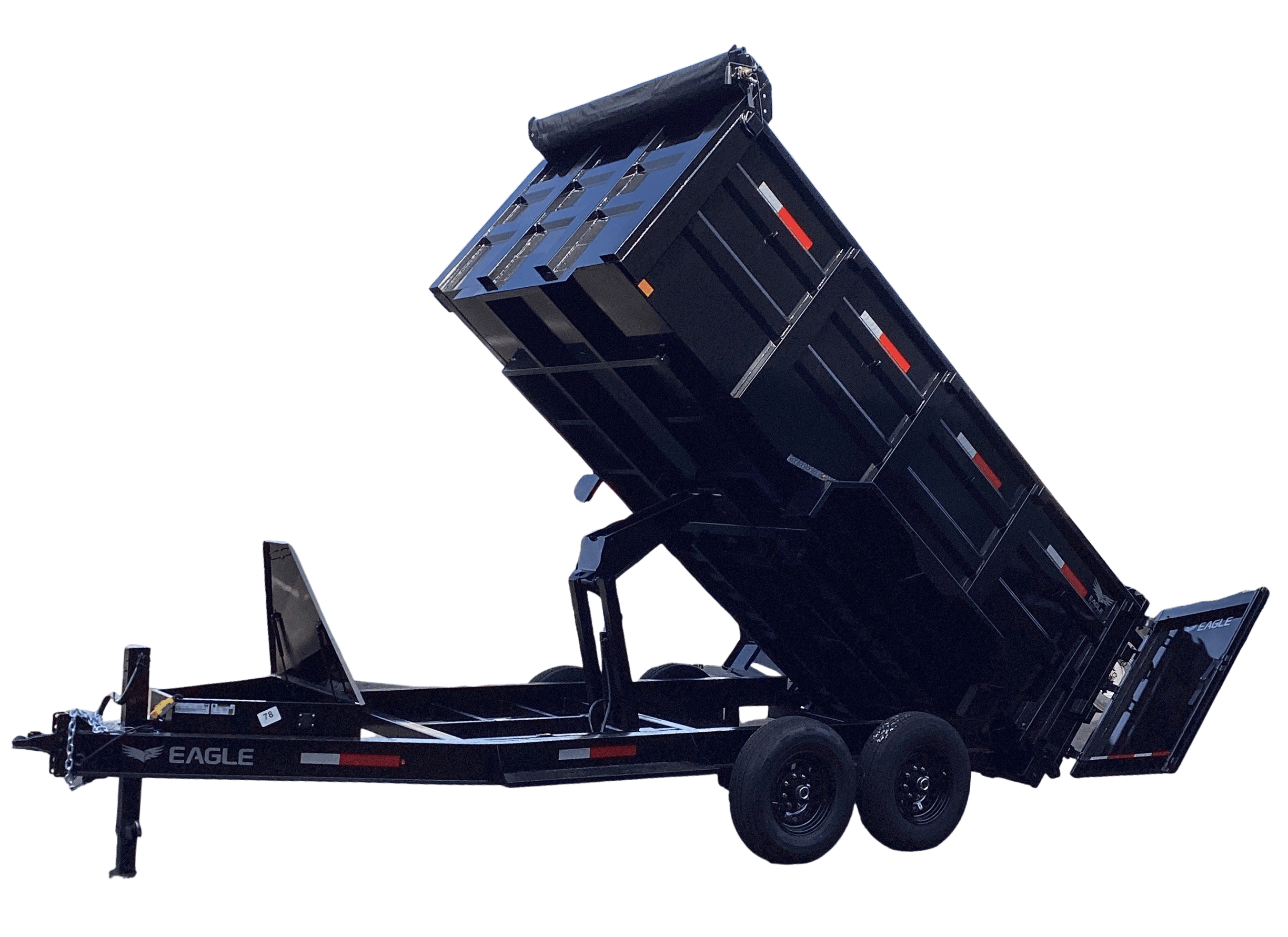

7 ' x 14 ' Tandem Axle Low Pro Dump , 24 " Sides
- Curb Wt
- 3790 lb
- GVWR
- 14000 lb
RDL36714TA5
7 ' x 14 ' Tandem Axle Low Pro Dump , 36 " Sides
- Curb Wt
- 4015 lb
- GVWR
- 14000 lb
RDL48714TA5
7 ' x 14 ' Tandem Axle Low Pro Dump , 48 " Sides
- Curb Wt
- 4110 lb
- GVWR
- 14000 lb
RDL24716TA5
7 ' x 16 ' Tandem Axle Low Pro Dump , 24" Sides
- Curb Wt
- 3890 lb
- GVWR
- 14000 lb
RDL36716TA5
7 ' x 16 ' Tandem Axle Low Pro Dump , 36 " Sides
- Curb Wt
- 4150 lb
- GVWR
- 14000 lb
RDL48716TA5
7 ' x 16 ' Tandem Axle Low Pro Dump , 48 " Sides
- Curb Wt
- 4290 lb
- GVWR
- 14000 lb
Available Units
Standard Features
- 8 " iBeam Tongue and Frame Construction
- Trickle Charge Line from Tow Vehicle
- 16 " Wheels and Tires ( Radial )
- Sealed Beam LED Lights
- PPG Primer and Paint
- Spare Tire Mount
- 4 D - Rings
- Heavy Duty Diamond Plate Fenders
- 7 gauge ( - ) 24 " , 36 " or 48 " Walls , 7 ( - ) gauge Floors
- 3 " x 3/16 " Channel Cross Members
- 4 ″ Full Length Bed Runners and Ramp Pockets
- Stored HD Ramp
- Metal Cover Mesh Tarp Roll System
- 110 Volt Charger
- Electric / Hydraulic Pump and Reservoir with Gravity Override
- Rear Stabilizer Jacks
- Tarp Bar
- Expanded Metal Tool Tray Under Dump Box
- Front Frame Foot Step
- Dual Action Spreader Gate
Popular Options
- Spare Tire Mount
- Two 8K Axle Upgrade ( 16K Rated )
- Three 7K Axle Upgrade ( 21K Rated )
- 24 " Expanded Metal Mesh or Solid Side Extensions
- Gooseneck Option
Specifications
- GAWR
- 14000
- Coupler Height
- 13.5" to 21.5"
- Deck Height
- 33"
- Main Frame
- 8" iBeam Frame
- Axle
- 2 (7,000 #) Axles with Brakes
- Floor
- 7 Gauge (-) Steel Floor
- Coupler
- Adjustable 2 5/16 " Coupler
- Dump Box Frame
- 2 " x 5 " Rectangle Tube\3" Channel 16" on Center Three-Way Spreader Gate 7 Gauge (-) Sides 5" Channel Full Length Runners (Note: with Ramps 3" HD Channel)
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Fenders
- 10 " x 72 " Jeep Style
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Hoist
- Electric / Hydraulic Scissor Hoist, Power Up/Power Down Control with Gravity Override (45° Dump Angle or More) Greasable Zerks
- Jack
- 12K Spring Loaded Drop Leg
- Lights
- Sealed Beam LED Lights
- Paint
- PPG Primer and Paint
- Ramps
- 7" HD Ramps 3" Channel Frame with Lockable Door
- Safety Chain
- 36" x 3/8" 16.2K Capacity
- Suspension
- Multi-Leaf Spring
- Tires
- ST 235/85 R16 Load Range E
- Tongue
- HD 8" iBeam Low Pro
- Uprights
- 2" x 6" Rectangle Tube
- Wheels
- 16 x 6 8-6.5 Mod (Black)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
