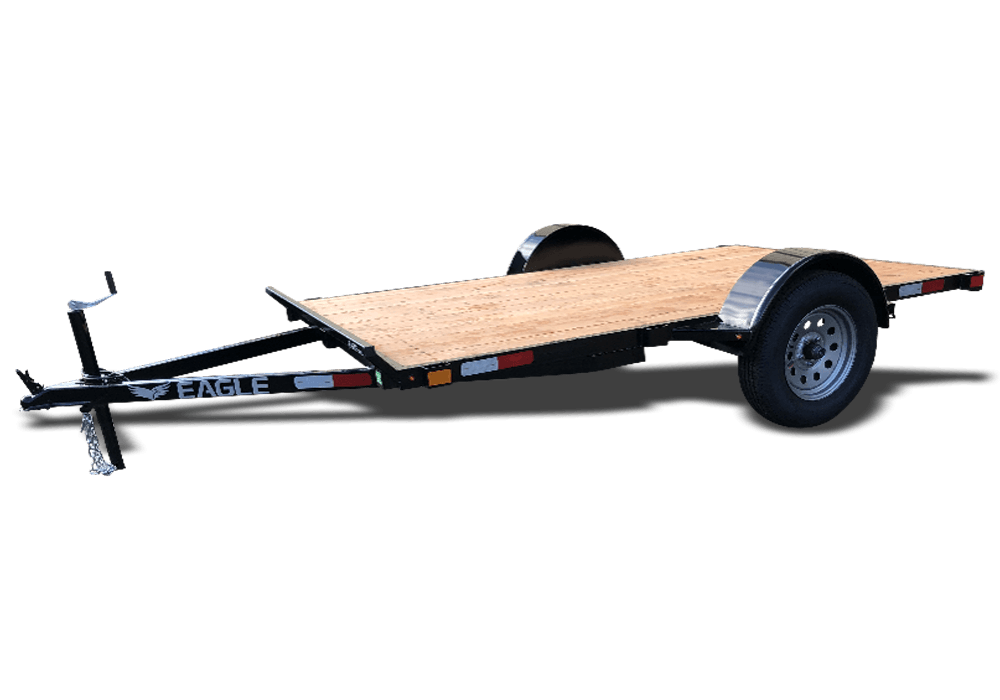

Flatbed Single Axle

Back to Category

Models/Sizes (Pricing Varies Accordingly):

Model Code: EFB408SA

Size: 4 ' x 8 ' Single Axle Flatbed

Curb Weight: 575

GVWR: 2990

Model Code: EFB508SA

Size: 5 ' x 8 ' Single Axle Flatbed

Curb Weight: 620

GVWR: 2990

Model Code: EFB510SA

Size: 5 ' x 10 ' Single Axle Flatbed

Curb Weight: 680

GVWR: 2990

Model Code: EFB610SA

Size: 6 ' x 10 ' Single Axle Flatbed

Curb Weight: 730

GVWR: 2990

Model Code: EFB612SA

Size: 6 ' x 12 ' Single Axle Flatbed

Curb Weight: 790

GVWR: 2990

Model Code: EFB6610SA

Size: 6'6 " x 10 ' Single Axle Flatbed

Curb Weight: 755

GVWR: 2990

Model Code: EFB6612SA

Size: 6'6 " x 12 ' Single Axle Flatbed

Curb Weight: 815

GVWR: 2990

Model Code: EFB6614SA

Size: 6'6 " x 14 ' Single Axle Flatbed

Curb Weight: 875

GVWR: 2990

Model Code: EFB710SA

Size: 7 ' x 10 ' Single Axle Flatbed 4 " Frame Upgrade

Curb Weight: 875

GVWR: 2990

Model Code: EFB712SA

Size: 7 ' x 12 ' Single Axle Flatbed 4 " Frame Upgrade

Curb Weight: 935

GVWR: 2990

Model Code: EFB714SA

Size: 7 ' x 14 ' Single Axle Flatbed 4 " Frame Upgrade

Curb Weight: 995

GVWR: 2990

In-Stock Units

Loading available inventory...

Standard Features:

15 " Wheels & Tires ( Radial )
2 " Coupler with 2K Top Wind Tongue Jack
Sealed Beam LED Lights
PPG Primer and Paint
2 " x 6 " # 2 or Better Fir Decking
Tube Tongue ( longer than competition )
Stake Pockets
Front Bump Rail
Front Step with Light

Popular Options (Additional Cost):

Tongue Box Steel or Aluminum Diamond Plate
Pressure Treated Decking
4 ' Ramp Attached with Metal Straps
ATV Ramps Stored Underneath
5,200lb Axle with Brakes
4 " Frame Upgrade
Jeep Style Diamond Plate Fenders
Swing up Tongue Jack with Wheel
Brakes on 3,500 lb Axle ILO Idler

Specifications:

GAWR	2990
Deck Height	19"
Frame	3" Channel
Axle	3,500# Posi-Lube Axle (Idler)
Cross Members	2" x 2" Angle
Decking	2 x 6 #2 or Better Fir Decking
Coupler	2" A-Frame Coupler
Fenders	Smooth 9" x 32"
Suspension	Multi-Leaf Spring
Coupler Height	16"
Ramps	Optional
Lights	Sealed Beam LED Lights
Electric Plug	4-Way Molded Water Tight Plug
Wheels	15 x 5 5-4.5 Mod (Silver)
Paint	PPG Primer and Paint
Tires	ST 205/75 R15 Load Range C
Safety Chain	30" x 1/4" 5.2K Capacity
Jack	2K Top Wind Tongue Jack
Tongue	2" x 3" Rectangular Tube
Bump Rail	1 1/2" x 1 1/2" Square Tube, 6" High

Available Colors:

Primary Colors:

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost):

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
