Models & Sizes
ETB716TA2

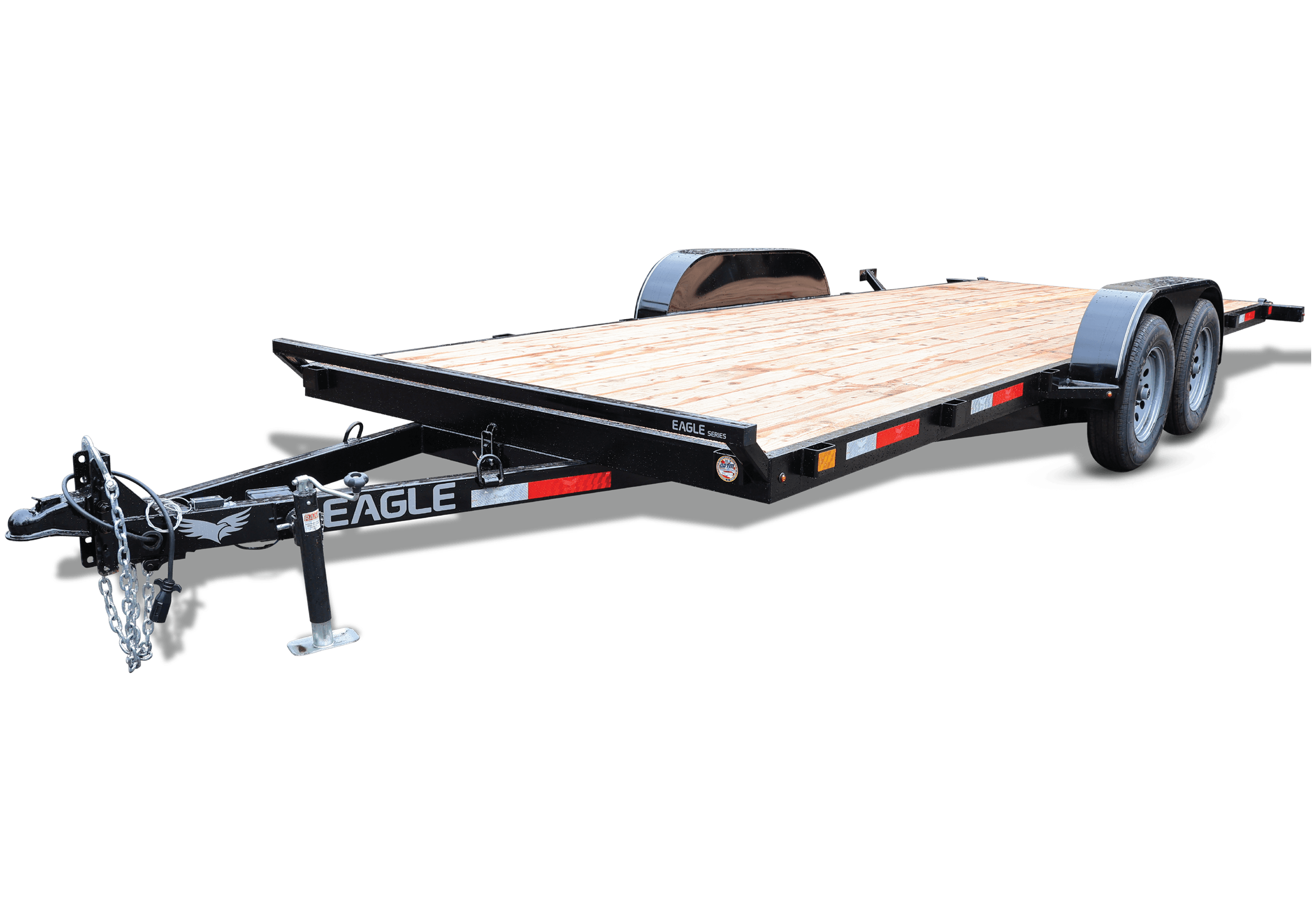

7 ' x 16 ' Tandem Axle Tilt Bed
- Curb Wt
- 1990 lb
- GVWR
- 7000 lb
ETB718TA2
7 ' x 18 ' Tandem Axle Tilt Bed
- Curb Wt
- 2125 lb
- GVWR
- 7000 lb
ETB720TA2
7 ' x 20 ' Tandem Axle Tilt Bed
- Curb Wt
- 2325 lb
- GVWR
- 7000 lb
Available Units
Standard Features
- Adjustable 2 5/16 " Coupler
- 15 " Wheels & Tires ( Radial )
- Sealed Beam LED Lights
- PPG Primer and Paint
- Stake Pockets & 4 D - Rings
- 2 x 6 # 2 or Better Fir Decking
- Tube Tongue ( longer than competition )
- 4 " Drop Axles
- 5K Swing Up Tongue Jack with Pad
- 83 " Between Fenders
- Brakes on Both Axles
- Full Width Rear Approach Plate
- Hydraulic Cushioning Cylinder
- Over Center Latch with Release
Popular Options
- Pressure Treated Decking
- Tongue Box Steel or Aluminum Diamond Plate
- 1/8 " Steel Decking Diamond Plate or Smooth
- Removable Fenders
- Spare Tire and / or Mount ( rear mounting )
- Cylinder Lock out Valve ( so multiple pieces of equipment can be loaded )
- Tower Winch Mount / Bump Rail Mount
Specifications
- GAWR
- 7000
- Coupler Height
- Adjustable
- Deck Height
- 20"
- Frame
- 5" Channel
- Axle
- (2) 3,500# Posi-Lube, 4" Drop Axle with Brakes
- Cross Members
- 3" Channel
- Decking
- 2 x 6 #2 or Better Fir Decking
- Bump Rail
- 2" x 2" Tube, 6" High
- Coupler
- Adjustable 2 5/16" Coupler
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Fenders
- 9" x 66" HD Smooth Fenders
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Jack
- 5K Swing Up Tongue Jack
- Lights
- Sealed Beam LED Lights
- Paint
- PPG Primer and Paint
- Ramps
- Full Width Rear Approach Plates
- Safety Chain
- 36" x 5/16" 11.7K Capacity
- Suspension
- Multi-Leaf Spring
- Tires
- ST 205/75 R15 Load Range C
- Tongue
- 2" x 5" Rectangular Tube
- Wheels
- 15 x 5 5-4.5 Mod (Silver)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
