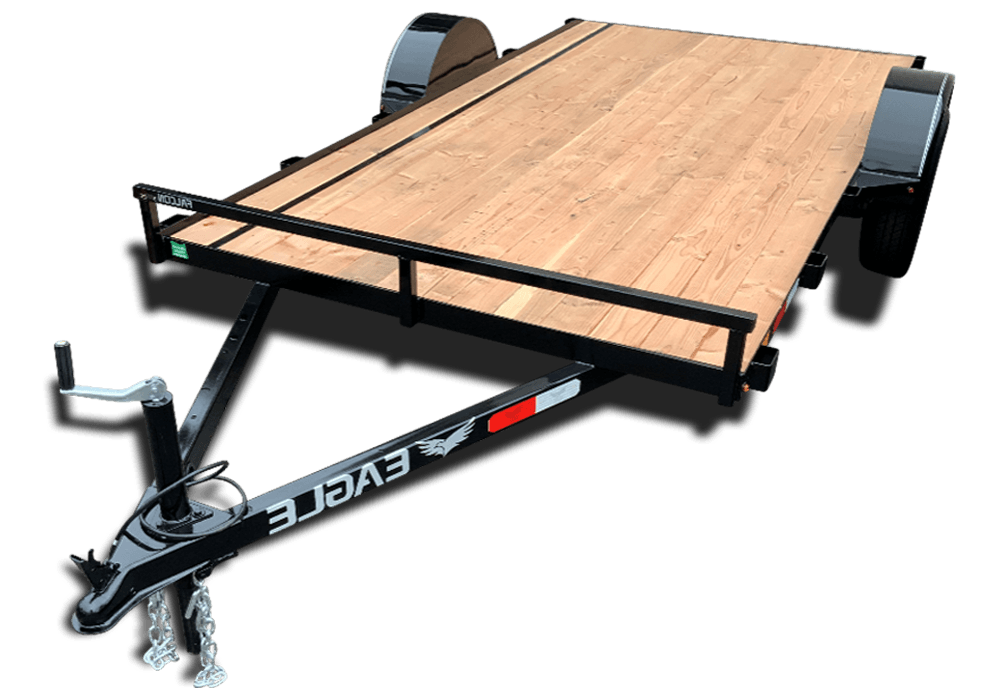

7K Angle Flatbed (Light Duty)

Back to Category

Models/Sizes (Pricing Varies Accordingly):

Model Code: FAFB512TA2

Size: 5 ' x 12 ' Tandem Axle Angle Flatbed

Curb Weight: 1185

GVWR: 7000

Model Code: FAFB612TA2

Size: 6 ' x 12 ' Tandem Axle Angle Flatbed

Curb Weight: 1285

GVWR: 7000

Model Code: FAFB712TA2

Size: 7 ' x 12 ' Tandem Axle Angle Flatbed

Curb Weight: 1325

GVWR: 7000

Model Code: FAFB714TA2

Size: 7 ' x 14 ' Tandem Axle Angle Flatbed

Curb Weight: 1400

GVWR: 7000

Model Code: FAFB716TA2

Size: 7 ' x 16 ' Tandem Axle Angle Flatbed

Curb Weight: 1530

GVWR: 7000

Model Code: FAFB718TA2

Size: 7 ' x 18 ' Tandem Axle Angle Flatbed

Curb Weight: 1620

GVWR: 7000

Model Code: FAFB720TA2

Size: 7 ' x 20 ' Tandem Axle Angle Flatbed

Curb Weight: 1730

GVWR: 7000

In-Stock Units

Loading available inventory...

Standard Features:

2 5/16 " Coupler with 2K Top Wind Tongue Jack
15 " Wheels & Tires ( Radial )
Sealed Beam LED Lights
PPG Primer and Paint
4 D - Rings
2 " x 6 " # 2 or Better Fir Decking
Rectangle Tube Tongue ( longer than competition )
Brakes on Both Axles
Stake Pockets
Stored 5 ' Heavy Duty Ramps
84 " Between Fenders

Popular Options (Additional Cost):

Tongue Box Steel or Aluminum Diamond Plate
Pressure Treated Decking
Spare Tire and / or Mount

Specifications:

GAWR	7000
Deck Height	19"
Frame	5" x 3" Angle
Axle	(2) 3,500# Posi-Lube Axles with Brakes
Cross Members	2" x 2" Angle
Decking	2 x 6 #2 or Better Fir Decking
Coupler	2 5/16 " Coupler
Fenders	84" Width Between Fenders 9" x 66" Fender
Suspension	Multi-Leaf Spring
Coupler Height	16"
Ramps	5' Stored Heavy Duty
Lights	Sealed Beam LED Lights
Electric Plug	7-Way RV Molded Water Tight Plug
Wheels	15 x 5 5-4.5 Mod (Silver)
Paint	PPG Primer and Paint
Finish	Steel is cleaned (wiped down) to ensure quality protective finish
Tires	ST 205/75 R15 Load Range C
Safety Chain	30" x 5/16" 7.6K Capacity
Jack	2K Top Wind Tongue Jack
Tongue	2" x 4" Rectangular Tube
Bump Rail	2" x 2" Rectangle Tube, 6" High

Available Colors:

Primary Colors:

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost):

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
