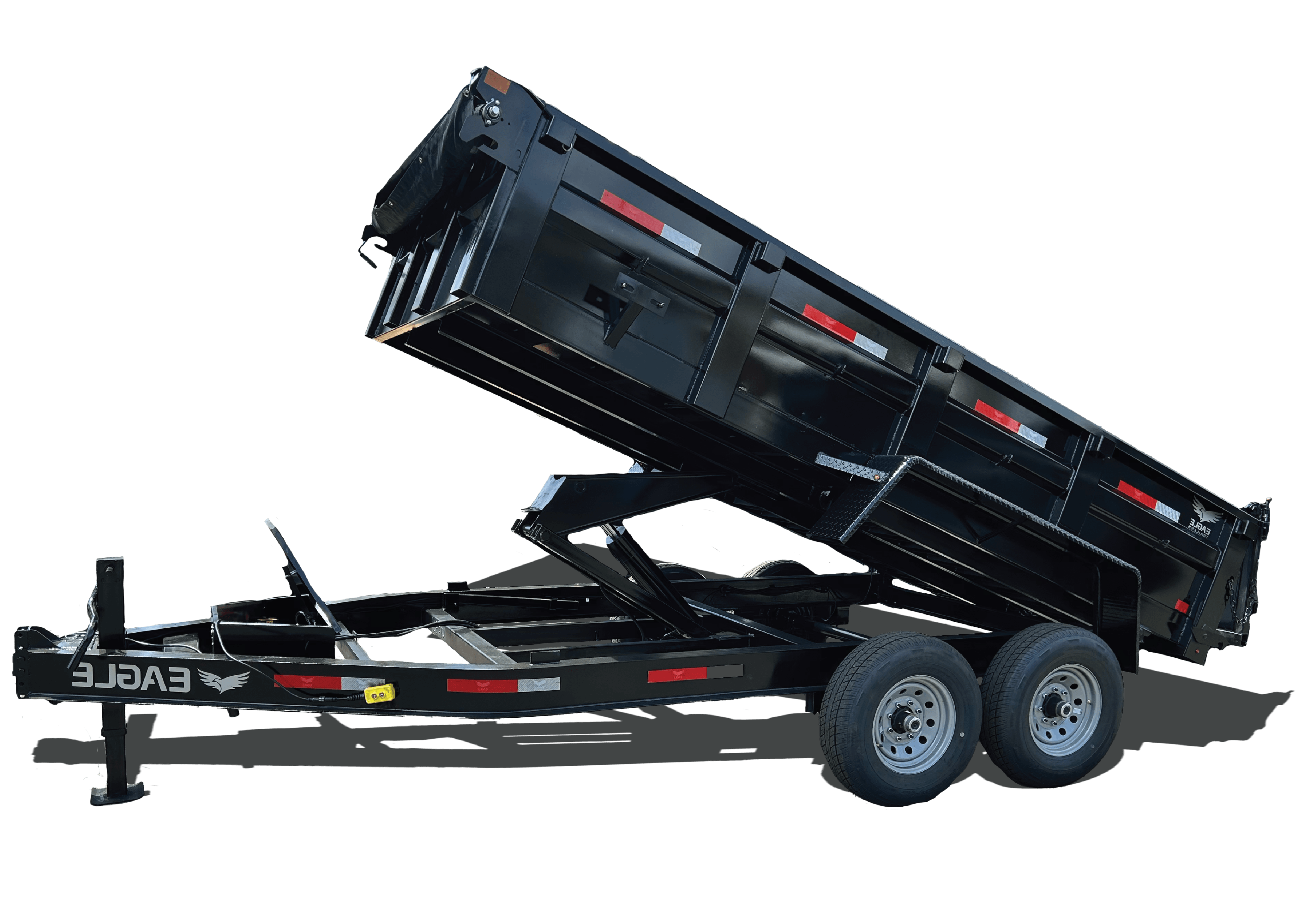

16K Low Profile Dump

Back to Category
16K Low Profile Dump

Models/Sizes (Pricing Varies Accordingly):

Model Code: RDL24714TA6

Size: 7 ' x 14 ' Tandem Axle Low Pro Dump, 24 " Sides

Curb Weight: 4050

GVWR: 16000

Model Code: RDL36714TA6

Size: 7 ' x 14 ' Tandem Axle Low Pro Dump , 36" Sides

Curb Weight: 4275

GVWR: 16000

Model Code: RDL48714TA6

Size: 7 ' x 14 ' Tandem Axle Low Pro Dump , 48 " Sides

Curb Weight: 4370

GVWR: 16000

Model Code: RDL24716TA6

Size: 7 ' x 16 ' Tandem Axle Low Pro Dump , 24 " Sides

Curb Weight: 4150

GVWR: 16000

Model Code: RDL36716TA6

Size: 7 ' x 16 ' Tandem Axle Low Pro Dump , 36 " Sides

Curb Weight: 4410

GVWR: 16000

Model Code: RDL48716TA6

Size: 7 ' x 16 ' Tandem Axle Low Pro Dump , 48 " Sides

Curb Weight: 4550

GVWR: 16000

In-Stock Units

Loading available inventory...

Standard Features:

  • 8 " iBeam Tongue and Frame Construction
  • Trickle Charge Line From Tow Vehicle
  • 16 " Wheels & Tires ( Radial )
  • Sealed Beam LED Lights
  • PPG Primer and Paint
  • 4 D - Rings
  • Heavy Duty Diamond Plate Fenders
  • 10 Gauge 24 " or 48 " Sidewalls
  • 3 " x 3/16 " Channel Cross Members
  • 4 " Full Length Bed Runners and Ramp Pockets
  • Metal Cover Mesh Tarp Roll System
  • 110 Volt Charger
  • Drop Down Rear Stabilizer Jacks
  • Front Frame Tool Step
  • Expanded Metal Tool Tray Under Dump Box
  • Electric Over Hydraulic Pump and Reservoir with Gravity Override
  • Tarp Bar
  • Dual Action Spreader Gate

Popular Options (Additional Cost):

  • Spare Tire
  • 24 " Expanded Metal Mesh Side Extensions
  • Solar Charger ( 1.5 Amp )
  • Gooseneck Option

Specifications:

GAWR16000
Deck Height25"
Main Frame8" iBeam Frame
3" Channel Cross Members and Reinforced Frame for Direct Push 5" Bore Hydraulic Cylinder
Axle7,000# Axle with Brakes
Floor8 Gauge (-) Steel Floor
Dump Box Frame2 " x 5 " Rectangle Tube (0.120") 1 1/2" x 1"
3" Channel 16" on Center
Three-Way Spreader Gate
10 Gauge (-) Sides
5" Channel Full Length Runners
6" Heavy Duty Uprights (Note: with Ramps 3" Channel)
Coupler2 5/16 " Coupler
Fenders10 " x 72 "
HoistElectric / Hydraulic Scissor Hoist, Power Up/Power Down Control with Gravity Override (45° Dump Angle or More)
Greasable Zerks
SuspensionMulti-Leaf Spring
Coupler Height13.5" to 21.5"
Ramps7" HD Ramps
3" Channel with Lockable Door
Uprights2" x 6" Rectangle Tube
LightsSealed Beam LED Lights
Electric Plug7-Way RV Molded Water Tight Plug
Wheels16 x 6 6-5.5 Mod (Black)
PaintPPG Primer and Paint
FinishSteel is cleaned (wiped down) to ensure quality protective finish
TiresST 235/85 R16 Load Range G
Safety Chain36" x 3/8" 16.2K Capacity
Jack12K Spring Loaded Drop Leg
TongueHD 8" iBeam Low Pro

Available Colors:

Primary Colors:

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost):

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
