7K Deckover Dump

Back to Category

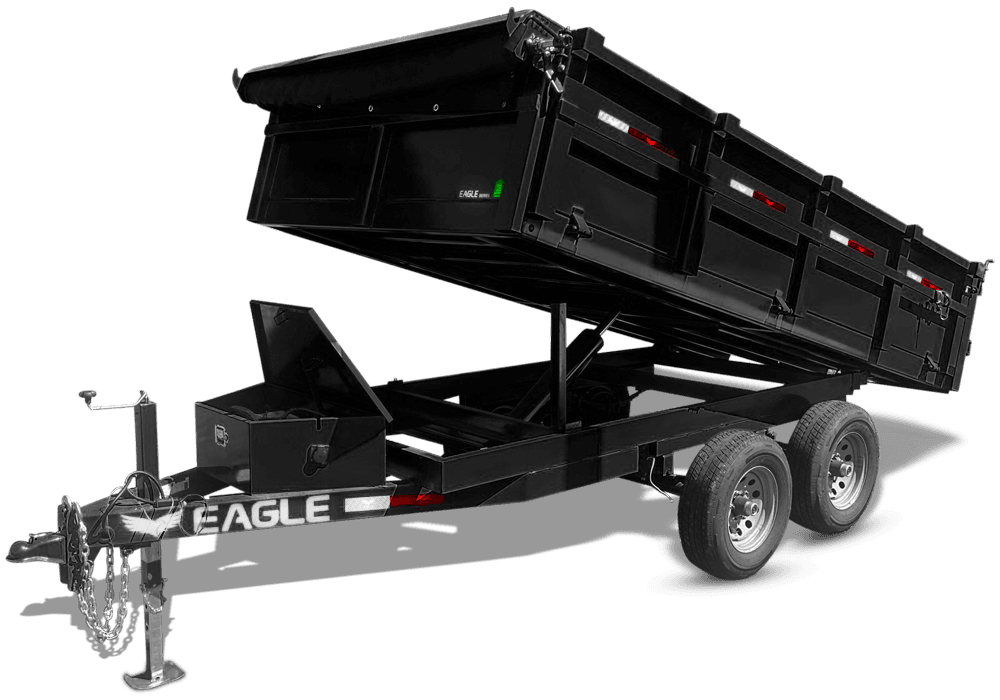

7K Deckover Dump

Models/Sizes (Pricing Varies Accordingly):

Model Code: EDOD810TA2

Size: 8 ' x 10 ' Tandem Axle Heavy Duty Dump

Curb Weight: 2610

GVWR: 7000

Model Code: EDOD8610TA2

Size: 8 ' 6 " x 10 ' Tandem Axle Heavy Duty Dump

Curb Weight: 2680

GVWR: 7000

Model Code: EDOD812TA2

Size: 8 ' x 12 ' Tandem Axle Heavy Duty Dump

Curb Weight: 2820

GVWR: 7000

Model Code: EDOD8612TA2

Size: 8 ' 6 " x 12 ' Tandem Axle Heavy Duty Dump

Curb Weight: 2910

GVWR: 7000

In-Stock Units

Loading available inventory...

Standard Features:

  • Adjustable 2 5/16 " Coupler w / 7K Drop Leg Jack
  • Brakes Both Axles
  • 10 gauge ( - ) Floor and Side Walls
  • Stake Pockets
  • Tube Tongue ( Longer than competition )
  • Front Diamond Plate Fender Steps
  • 2 " Flat Bar Heavy Duty Tie Rail
  • Trickle Charge Line From Tow Vehicle
  • Spare Tire Mount
  • HD Deep Cycle Battery
  • 15 " Wheels & Tires ( Radial )
  • Direct Push 5 " Bore Cylinder
  • Sealed Beam LED Lights
  • Electric / Hydraulic USA Made Pump with Reservoir and Gravity Override
  • PPG Primer and Paint
  • Tarp Bar
  • Lockable Tongue Box

Popular Options (Additional Cost):

  • Stored Heavy Duty Ramps w/ 4 D-Rings
  • Spare Tire and Mount
  • Dual Action Spreader Gate
  • Metal Covered Mesh Roll Tarp System
  • Scissor Lift ILO Direct Push Cylinder
  • Higher Sides - 31" or 43"
  • 110 Volt Charger
  • Fold Down Sides

Specifications:

GAWR7000
Deck Height33"
Main Frame4" Channel
3" Channel Cross Members and Reinforced Frame for Direct Push
5" Bore Hydraulic Cylinder
Axle2 ( 3,500 # ) Posi - Lube Axle with Brakes
Floor10 Gauge (-) Steel Floor
Sides10 Gauge (-)
Dump Box Frame2 " x 4 " Rectangle Tube ( .120 " )
1 ½ " x 1½ " Heavy Wall Tubing 16 " on Center
Barn Doors
10 gauge ( - ) sides ( Note : with ramps 2 " x 5 " dump box frame )
Coupler2 5/16 " Adjustable Coupler
HoistElectric / Hydraulic Direct Push Cylinder Hoist ( 45 ° dump angle or more )
Greasable Zerks
SuspensionMulti-Leaf Spring
Coupler HeightAdjustable
RampsOptional
Uprights2" x 4" Rectangle Tube
LightsSealed Beam LED D.O.T.
Electric Plug7-Way RV Molded Water Tight Plug
Wheels15 x 5 5-4.5 Mod (Silver)
PaintPPG Primer and Paint
FinishSteel is cleaned (wiped down) to ensure quality protective finish
TiresST 205/75 R15 Load Range C
Safety Chain36" x 5/16" 7.6K Capacity
Jack7K Drop Leg Tongue Jack
Tongue2" x 4" Rectangular Tube (.120 Thick Wall)

Available Colors:

Primary Colors:

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost):

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
