Models & Sizes
RDL24610TA3

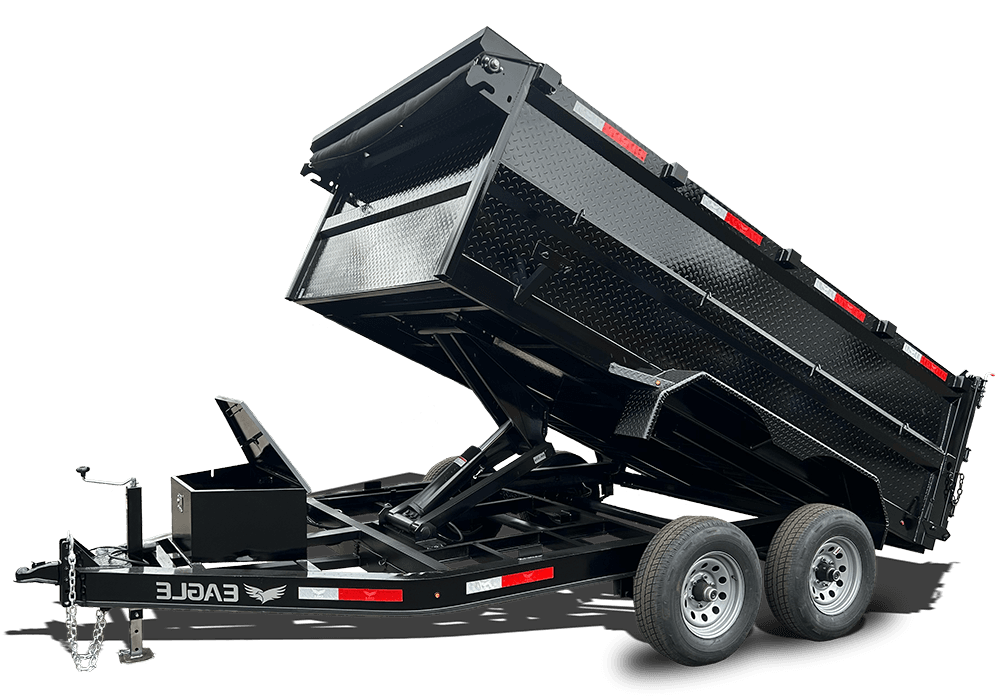

6 ' x 10 ' Tandem Axle Low Pro Dump , 24 " Sides
- Curb Wt
- 2405 lb
- GVWR
- 10000 lb
RDL36610TA3
6 ' x 10 ' Tandem Axle Low Pro Dump , 36 " Sides
- Curb Wt
- 2670 lb
- GVWR
- 10000 lb
RDL48610TA3
6 ' x 10 ' Tandem Axle Low Pro Dump , 48 " Sides
- Curb Wt
- 2860 lb
- GVWR
- 10000 lb
RDL24612TA3
6' x 12' Tandem Axle Low Pro Dump, 24" Sides
- Curb Wt
- 2595 lb
- GVWR
- 10000 lb
RDL36612TA3
6' x 12' Tandem Axle Low Pro Dump, 36" Sides
- Curb Wt
- 2860 lb
- GVWR
- 10000 lb
RDL48612TA3
6' x 12' Tandem Axle Low Pro Dump, 48" Sides
- Curb Wt
- 3050 lb
- GVWR
- 10000 lb
RDL24710TA3
7' x 10' Tandem Axle Low Pro Dump, 24" Sides
- Curb Wt
- 2525 lb
- GVWR
- 10000 lb
RDL36710TA3
7' x 10' Tandem Axle Low Pro Dump, 36" Sides
- Curb Wt
- 2795 lb
- GVWR
- 10000 lb
RDL48710TA3
7' x 10' Tandem Axle Low Pro Dump, 48" Sides
- Curb Wt
- 3070 lb
- GVWR
- 10000 lb
RDL24712TA3
7' x 12' Tandem Axle Low Pro Dump, 24" Sides
- Curb Wt
- 2740 lb
- GVWR
- 10000 lb
Available Units
Standard Features
- 6 " iBeam Tongue and Frame Construction
- Trickle Charge Line From Tow Vehicle 15 " Wheels and Tires ( Radial )
- Sealed Beam LED Lights
- PPG Primer and Paint
- Spare Tire Mount
- 4 D - Rings
- Heavy Duty Diamond Plate Fenders
- Dual Action Spreader Gate
- Scissor Hoist
- 10 gauge ( - ) 24 " , 36 " or 48 " Walls , 8 ( - ) gauge Floors
- 3 " x 3/16 " Channel Cross Members
- Ramp Pockets
- Stored HD Ramp
- Metal Cover Mesh Tarp Roll System
- 110 Volt Charger
- Tarp Bar
- Electric / Hydraulic Pump and Reservoir with Gravity Override
Popular Options
- Spare Tire
- Rear Stabilizer Jacks
- Pintle Eye
- 24 " Expanded Metal Mesh or Solid Side Extensions
Specifications
- GAWR
- 10400
- Coupler Height
- 13.5" to 21.5"
- Deck Height
- 30"
- Main Frame
- 6" Channel Frame 3" Channel Cross Members
- Axle
- 2 ( 5,200 # ) Posi - Lube Axle with Brakes
- Floor
- 8 Gauge (-) Steel Floor
- Coupler
- Adjustable 2 5/16 " Coupler
- Dump Box Frame
- 2 " x 5 " Rectangle Tube ( .120 " ) 1 1/5" x 1 1/2" Heavy Wall Tubing 16 " on Center Three-Way Spreader Gate 10 gauge ( - ) sides (Note: with Ramps 2" x 5" Dump Box Frame)
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Fenders
- 9 " x 72 " Diamond Plate Double Broke
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Hoist
- Electric / Hydraulic Scissor Hoist, Power Up/Power Down Control with Gravity Override (45° Dump Angle or More) Greasable Zerks
- Jack
- 7K Drop Leg Jack
- Lights
- Sealed Beam LED Lights
- Paint
- PPG Primer and Paint
- Ramps
- 7" HD Ramps 3" Channel with Lockable Door
- Safety Chain
- 36" x 5/16" 11.7K Capacity
- Suspension
- Multi-Leaf Spring
- Tires
- ST 225/75 R15 Load Range D
- Tongue
- HD 6" iBeam Low Pro
- Uprights
- 2" x 4" Rectangle Tube
- Wheels
- 15 x 6 6-5.5 Mod (Silver)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
