Models & Sizes
BHRC714TA5

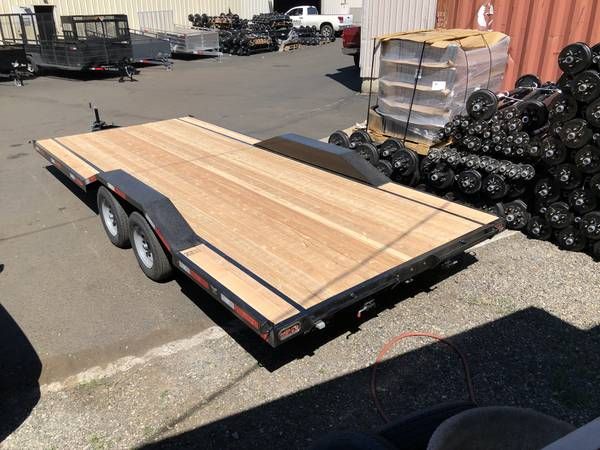

7'x14 ' Tandem Axle Flatbed
- Curb Wt
- 2425 lb
- GVWR
- 14000 lb
BHRC716TA5
7 ' x 16 ' Tandem Axle Flatbed
- Curb Wt
- 2555 lb
- GVWR
- 14000 lb
BHRC718TA5
7 ' x 18 ' Tandem Axle Flatbed
- Curb Wt
- 2685 lb
- GVWR
- 14000 lb
BHRC720TA5
7 ' x 20 ' Tandem Axle Flatbed w / Stabilizer Jacks
- Curb Wt
- 2835 lb
- GVWR
- 14000 lb
BHRC722TA5
7 ' x 22 ' Tandem Axle Flatbed w / Stabilizer Jacks
- Curb Wt
- 2985 lb
- GVWR
- 14000 lb
BHRC724TA5
7 ' x 24 ' Tandem Axle Flatbed w / Stabilizer Jacks
- Curb Wt
- 3135 lb
- GVWR
- 14000 lb
Available Units
Standard Features
- 2 5/16 " Adjustable Coupler
- 16 " Wheels & Tires ( Radial )
- Sealed Beam LED Lights
- PPG Primer and Paint
- 2 " x 6 " # 2 or Better Fir Decking
- Tube Tongue ( longer than competition )
- Brakes on Both Axles
- 5 ' Heavy Duty Stored Ramps
- 4 D - Rings
- 12K Drop Leg Tongue Jack
- Stake Pockets
- Full Length Heavy Duty Rub Rail
- Spare Tire Mount
- 10 " Drive Over Fenders Channel Iron
- Diamond Plate Surface on Outriggers
Popular Options
- Tongue Box Steel or Aluminum Diamond Plate
- Pressure Treated Decking
- Spare Tire Mount
- Beavertail
- Steel Decking Diamond Plate / Smooth / Sand Texture
- Spring Assisted Heavy Duty Equipment Ramps with Support Elbow
Specifications
- GAWR
- 14000
- Coupler Height
- Adjustable
- Deck Height
- 24"
- Frame
- 6" Channel
- Axle
- (2) 7,000# Posi-Lube Axles with Brakes
- Cross Members
- 3" Channel, 16" on Center
- Decking
- 2 x 6 #2 or Better Fir Decking
- Bump Rail
- 2" x 2" Rectangle Tube, 6" High
- Coupler
- Adjustable 2 5/16" Coupler
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Fenders
- 10" Channel Drive Over
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Jack
- 12K Drop Leg Tongue Jack
- Lights
- Sealed Beam LED Lights
- Paint
- PPG Primer and Paint
- Ramps
- 5' Heavy Duty Stored
- Safety Chain
- 36" x 3/8" 16.2K Capacity
- Suspension
- Multi-Leaf Spring
- Tires
- ST 235/80 R16 Load Range E
- Tongue
- 2" x 5" Rectangular Tube
- Wheels
- 16 x 6 8-6.5 Mod (Black)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
