Models & Sizes
BHTB716TA5

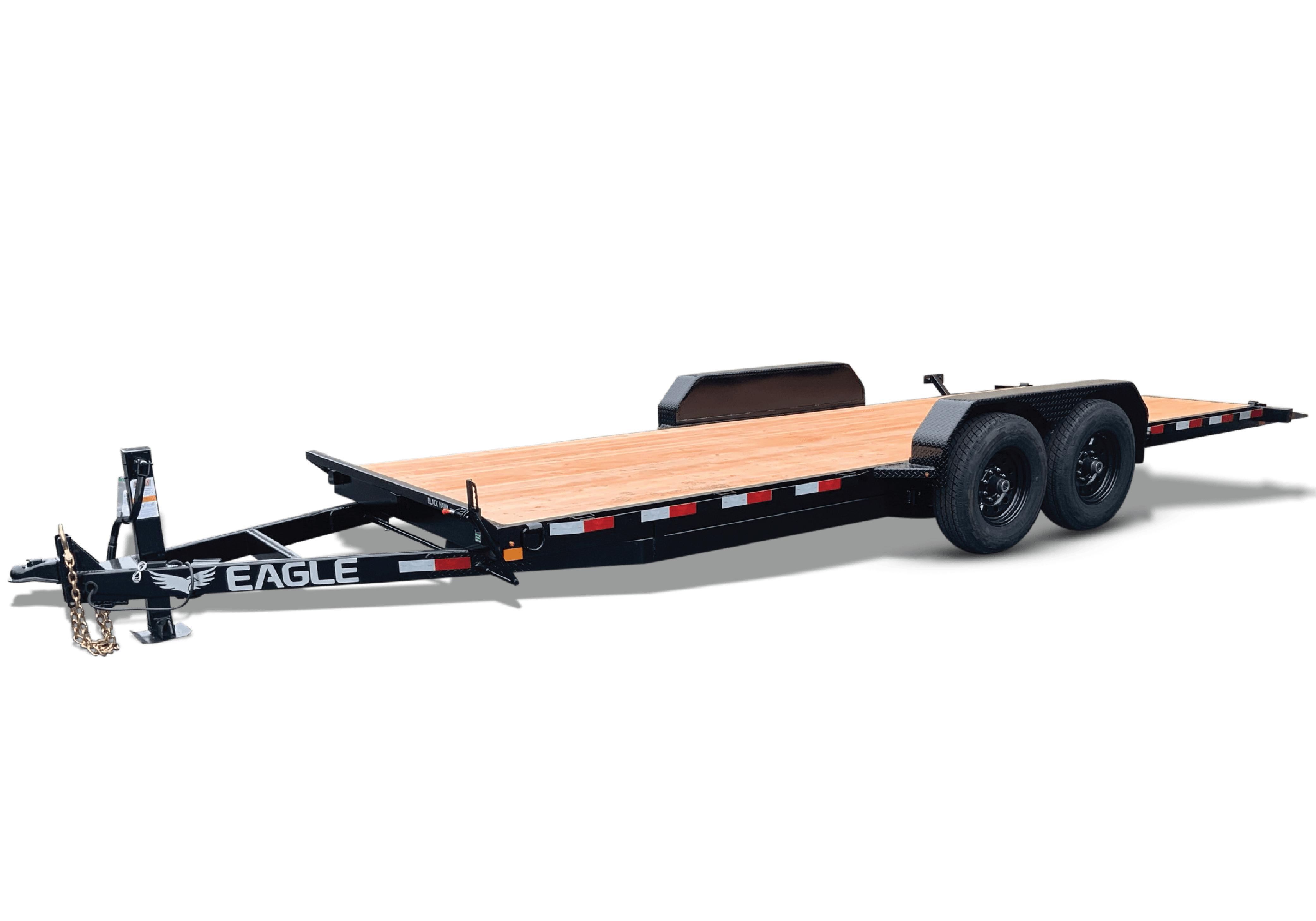

7' x 16' Tandem Axle Hydraulic Cylinder Tilt
- Curb Wt
- 2380 lb
- GVWR
- 14000 lb
BHTB718TA5
7' x 18' Tandem Axle Hydraulic Cylinder Tilt
- Curb Wt
- 2530 lb
- GVWR
- 14000 lb
BHTB720TA5
7' x 20' Tandem Axle Hydraulic Cylinder Tilt
- Curb Wt
- 2680 lb
- GVWR
- 14000 lb
BHTB722TA5
7' x 22' Tandem Axle Hydraulic Cylinder Tilt
- Curb Wt
- 2830 lb
- GVWR
- 14000 lb
BHTB724TA5
7' x 24' Tandem Axle Hydraulic Cylinder Tilt
- Curb Wt
- 2980 lb
- GVWR
- 14000 lb
Available Units
Standard Features
- Adjustable 2 5/16" Coupler
- 16" Wheels & Tires (Radial)
- PPG Primer and Paint
- Sealed Beam LED Lights
- 4 D-Rings
- 2" x 6" #2 or Better Fir Decking
- Tube Tongue (Longer than competition)
- 12K Drop Leg Tongue Jack
- Brakes on Both Axles
- Spare Tire Mount
- Heavy Duty Diamond Plate Fenders
- Cushioning Hydraulic Cylinder
- 30" Steel Rear Approach in Addition to Length
- Stake Pockets and Heavy Duty Rub Rail
- Over Center Latch with Release
- 83" Between Fenders
- Front Diamond Plate Fender Steps
Popular Options
- Tongue Box Steel or Aluminum Diamond Plate
- Cushioning Hydraulic Cylinder with Lock Out Valve
- Tower Winch Mount/Bump Rail Mount
- 1/8" Steel Diamond Plate or Smooth
- Removable Fenders
- Pressure Treated Decking
Specifications
- GAWR
- 14000
- Coupler Height
- Adjustable
- Deck Height
- 22"
- Frame
- 6" Channel
- Axle
- (2) 7,000# Posi-Lube Axles with Brakes
- Cross Members
- 3" Channel, 16" on Center
- Decking
- 2" x 6" #2 or Better Fir Decking
- Bump Rail
- 2" x 2" Rectangle Tube, 6" High
- Coupler
- Adjustable 2 5/16" Coupler
- Electric Plug
- 7-Way RV Molded Water Tight Plug
- Fenders
- 81 1/2" Between Fenders 10" x 72" Diamond Plate
- Finish
- Steel is cleaned (wiped down) to ensure quality protective finish
- Jack
- 12K Drop Leg Tongue Jack
- Lights
- Sealed Beam LED Lights
- Paint
- PPG Primer and Paint
- Ramps
- 30" Steel Rear Approach
- Safety Chain
- 36" x 3/8" 16.2K Capacity
- Suspension
- Multi-Leaf Spring
- Tires
- ST 235/80 R16 Load Range E
- Tongue
- 2" x 6" Rectangular Tube
- Wheels
- 16 x 6 8 - 6.5 Mod (Black)
Available Colors
Primary Colors
Black ALK-FP901
Eagle Majestic Grey
Optional Colors (Additional Cost)
White ALK-FP951
Bright Yellow ALK-FP801
Cat Yellow ALK-FP827
Ford Blue ALK-FP101
Ice Gray ALK-FP301
John Deer Green ALK-FP401
Kubota Orange ALK-FP601
Case IH Red ALK-FP701
