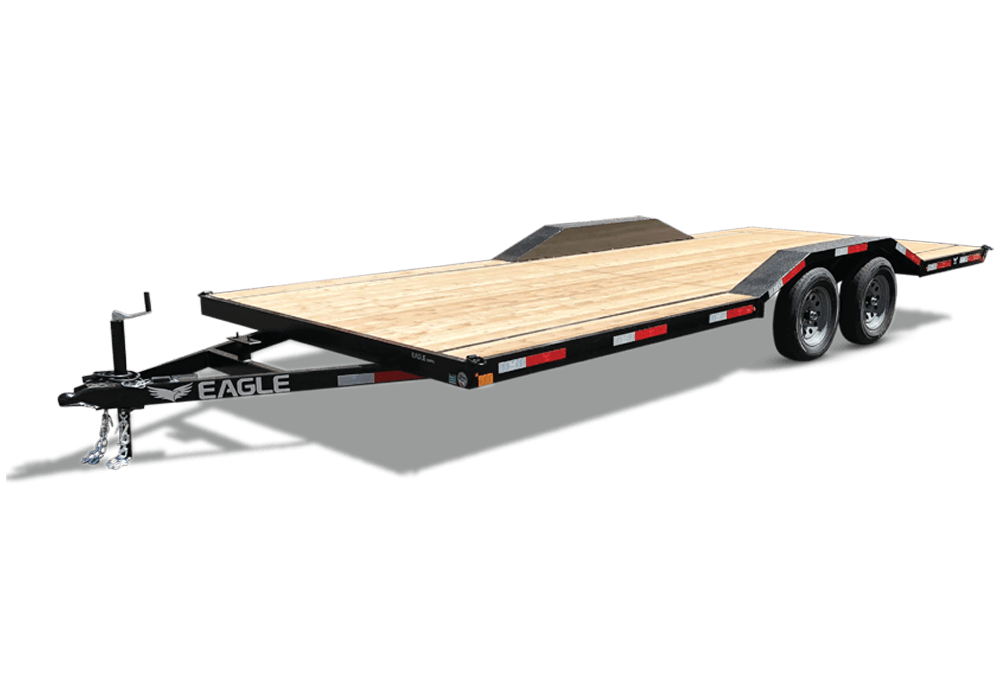

7k 5" Frame Rock Crawler Flatbed Drive Over Fender w/ Outriggers

Back to Category

Models/Sizes (Pricing Varies Accordingly):

Model Code: EFBRC610TA2

Size: 6'x10 ' Tandem Axle 5 " Channel Flatbed

Curb Weight: 1425

GVWR: 7000

Model Code: EFBRC612TA2

Size: 6 ' x 12 ' Tandem Axle 5 " Channel Flatbed

Curb Weight: 1530

GVWR: 7000

Model Code: EFBRC710TA2

Size: 7 ' x 10 ' Tandem Axle 5 " Channel Flatbed

Curb Weight: 1555

GVWR: 7000

Model Code: EFBRC712TA2

Size: 7 ' x 12 ' Tandem Axle 5 " Channel Flatbed

Curb Weight: 1660

GVWR: 7000

Model Code: EFBRC714TA2

Size: 7 ' x 14 ' Tandem Axle 5 " Channel Flatbed

Curb Weight: 1765

GVWR: 7000

Model Code: EFBRC716TA2

Size: 7 ' x 16 ' Tandem Axle 5 " Channel Flatbed

Curb Weight: 1870

GVWR: 7000

Model Code: EFBRC718TA2

Size: 7 ' x 18 ' Tandem Axle 5 " Channel Flatbed

Curb Weight: 1975

GVWR: 7000

Model Code: EFBRC720TA2

Size: 7 ' x 20 ' Tandem Axle 5 " Channel Flatbed w / Stabilizer Jacks

Curb Weight: 2100

GVWR: 7000

Model Code: EFBRC722TA2

Size: 7 ' x 22 ' Tandem Axle 5 " Channel Flatbed w / Stabilizer Jacks

Curb Weight: 2225

GVWR: 7000

Model Code: EFBRC724TA2

Size: 7 ' x 24 ' Tandem Axle 5 " Channel Flatbed w / Stabilizer Jacks

Curb Weight: 2350

GVWR: 7000

In-Stock Units

Loading available inventory...

Standard Features:

2 5/16 " Coupler with 2K Top Wind Tongue Jack
15 " Wheels & Tires ( Radial )
Sealed Beam LED Lights
PPG Primer and Paint
2 " x 6 " # 2 or Better Fir Decking
Tube Tongue ( longer than competition )
Brakes on Both Axles
6 " Bump Rail
5 ' Heavy Duty Stored Ramps
4 D - Rings
10 " Drive Over Fenders ( channel ) , 84 " Between
1/8 " Diamond Plate Surface on Outriggers

Popular Options (Additional Cost):

Tongue Box Steel or Aluminum Diamond Plate
Pressure Treated Decking
Spare Tire and / or Mount
Beavertail
Steel Decking Diamond Plate / Smooth / Sand Texture

Specifications:

GAWR	7000
Deck Height	21"
Frame	5" Channel
Axle	(2) 3,500# Posi-Lube Axles with Brakes
Cross Members	3" Channel
Decking	2 x 6 #2 or Better Fir Decking
Coupler	2 5/16 " Coupler
Fenders	82" Between Fenders 10" Drive on/Drive off Iron Fenders
Suspension	Multi-Leaf Spring
Coupler Height	17"
Ramps	5' Heavy Duty Stored
Lights	Sealed Beam LED Lights
Electric Plug	7-Way RV Molded Water Tight Plug
Wheels	15 x 5 5-4.5 Mod (Silver)
Paint	PPG Primer and Paint
Finish	Steel is cleaned (wiped down) to ensure quality protective finish
Tires	ST 205/75 R15 Load Range C
Safety Chain	30" x 5/16" 7.6K Capacity
Jack	2K Top Wind Tongue Jack
Tongue	2" x 4" Rectangular Tube
Bump Rail	2" x 2" Rectangle Tube, 6" High

Available Colors:

Primary Colors:

Black ALK-FP901

Eagle Majestic Grey

Optional Colors (Additional Cost):

White ALK-FP951

Bright Yellow ALK-FP801

Cat Yellow ALK-FP827

Ford Blue ALK-FP101

Ice Gray ALK-FP301

John Deer Green ALK-FP401

Kubota Orange ALK-FP601

Case IH Red ALK-FP701
